Loyalty Reporting

Created 16 February 2026 • Updated 12 March 2026

Data Extracts

Loyalty data can be automatically exported each evening and securely delivered to a designated SFTP location. These files, commonly referred to as iZone Extracts, are designed for seamless integration with third-party systems or further analysis.

The Loyalty system assigns a unique identifier to transaction data within Aztec. By combining both the Loyalty and Aztec extracts, businesses can feed this enriched dataset into CRM platforms such as Airship. This integration enables the creation of a unified customer view and provides deeper insights into spending behaviour.

To request access to the SFTP location, please contact your Zonal Account Representative. If you require additional extras to be separated by company, your Account Representative can also arrange this for you
Loyalty Data Extracts Topics

Setting Up Loyalty Extracts

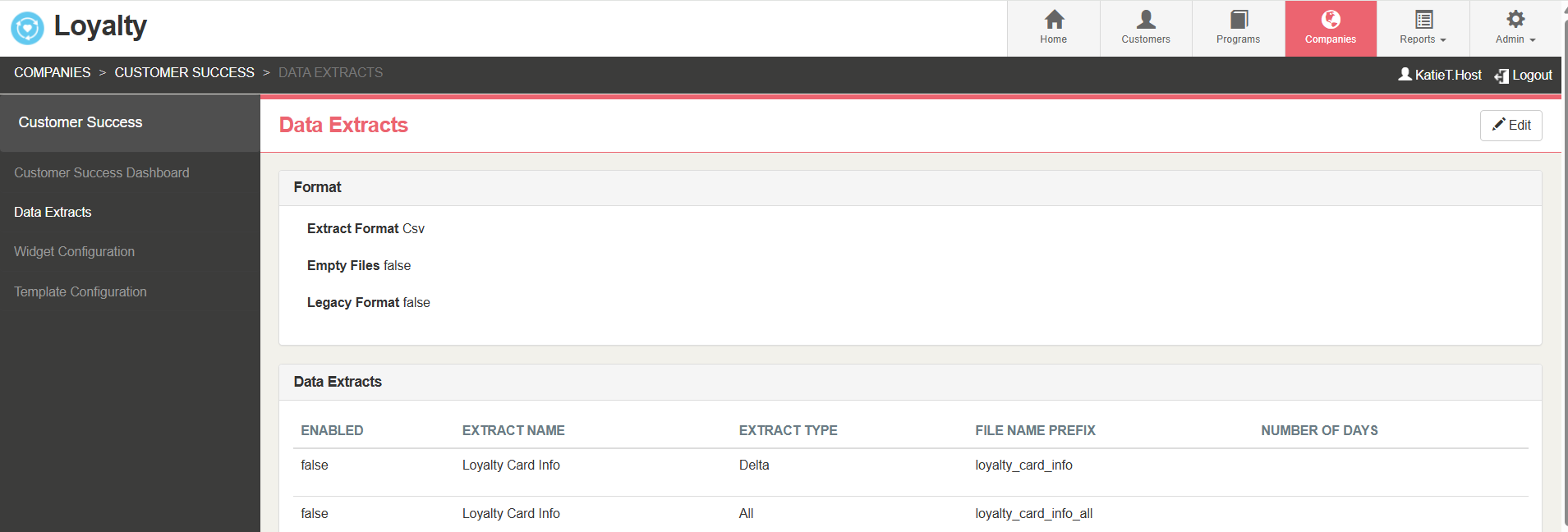

Navigate to Loyalty Platform → Companies → Select the Company → Data Extracts

Follow these steps to set up or amend the Loyalty Data Extracts:

  1. Click Edit

  2. Apply the required Data Extract settings

  3. Click Save

Data Extract Settings

Format Options

  • Extract Format: Choose the file format from the drop-down menu:

    • .CSV: Default system format

    • SQL Server Compatible: Removes specific characters for SQL Server compatibility

  • Empty Files: When selected, the system generates an empty file (with the relevant title) if no data is available. Disabled by default

  • Legacy Format: For historic reporting only. Please ignore for current configurations..

Data Extract Configuration

  • Enable Extracts: Activate extracts by ticking the checkboxes in the Enabled column

  • File Name Prefix: Each extract has a default file name prefix. Update if required

  • Expiry Extract: Contains all balances due to expire within the period specified in the Number of Days setting

Loyalty Extracts Definitions

The following data extracts are available for Zonal Loyalty

The Loyalty Card Info extract provides a list of all registered loyalty cards, grouped by company and the associated program each customer has joined.

Two file types are available:

  • Full Export – A complete list of all registered loyalty cards. This file will overwrite the previous version each time it is generated.

    • Default Naming Convention: loyalty_card_info.csv

  • Delta Export – A dated file containing only changes (new or updated cards) from the previous day, covering the period midnight to midnight.

    • Default Naming Convention: loyalty_card_info_YYYYMMDD_HHMMSS.csv

Only loyalty cards linked to registered customer details are included in this extract
Fields
Field Name Data Type Nullable Notes
customer_id String (255) N Unique identifier for each loyalty member
brand String (255) N The Company name the customer is registered to
program String (255) N Loyalty program name the customer is registered to
card_number String (255) N Numerical value
card_status String (255) N Card Status: Inventory / Activated / Suspended
pin INT (32-bit) N Pin number associated with card (for use with balance check widget). No leading zero's
registration_type String (255) Y Light Mobile, Light Email, Full
LastModified Date/Time N The date the record was last modified
Customer_Guid Char (36) Y Unique identifier customer GUID supplied by Platform Services
Company_Guid Char (36) Y Company GUID that the customer is registered to
first_use Date/Time Y First time a card was used on POS (It must involve a purchase)
first_use_employee_id Char (20) Y Employee ID responsible for capturing card’s first use
first_use_site_aztec_id Char (40) Y Aztec Site ID of which first use was captured
first_use_site_id Char (20) Y Loyalty Site ID of which first use was captured
first_use_site_guid Char (36) Y

Loyalty Site GUID of which first use was captured

The Loyalty Balances extract provides the points or currency balances for each loyalty card account.

Two file types are available:

  • Full Export – A complete list of balances for all registered cards. This file will overwrite the previous version each time it is generated

    • Default Naming Convention: loyalty_balances_all.csv

  • Delta Export – A dated file containing only balance changes from the previous day, covering the period midnight to midnight

    • Default Naming Convention: loyalty_balances_YYYYMMDD_HHMMSS.csv

Only reward balances marked as “free” are included in this extract. This feature must be enabled for the relevant reward within the Loyalty application. By default, reward balances are not included
Fields
Field Name Data Type Nullable Notes
card_number String (255) N Numerical value
value_type String (255) N Value Type set in Loyalty. Currency / Points / Custom value
value_type_code String (255) Y Code of the value type if applicable. e.g. An Aztec entity code, discount ID etc
value_type_description String (255) N Description of the value type
balance Decimal (18,2) N Balance of value type remaining. If null, balance may be redeemed against account an unlimited amount of times
LastModified Date/Time N The date the record was last modified

The Loyalty Transactions extract contains all loyalty transactions from all sites within a company for the previous day, covering the period midnight to midnight.

File type:

  • Delta Export – A dated file containing only transactions from the previous day, covering the period midnight to midnight.

    • Default Naming Convention: loyalty_transactions_YYYYMMDD_HHMMSS.csv

Due to the size and volume of this data, a full export of all transactions from the start of the program is not available



Fields
Field Name Data Type Nullable Notes
transaction_id String (255) N Loyalty Unique Transaction ID
transaction_date_time Date/Time N
transaction_description String (255) N Type of loyalty transaction that has been processed. Values - Credit, Debit, Adjustment, Void and Expiry
transaction_amount Decimal (18,2) N Amount of points/currency accrued, number of prizes debited etc.
organization_id String (255) Y Legacy field
loyalty_card_number String (255) N Maps to card_number in current automatic customer file
loyalty_value_type String (255) N This will be the reward type in the transaction Spend related to Total Spend Currency, Visits and Points
loyalty_value_type_code String (255) Y Code of the item that is being tracked and can be any value. The ID of the ‘loyalty_value_type_description’ (i.e. Total Spend, 17, Points, 13, Visits, 16)
loyalty_value_type_description String (1024) Y Description which was given to the reward/item and links to the type_code. Value - Points, Currency, Spend, Visits, Aztec Product Description,
loyalty_account_value_type_balance Decimal (18,2) N The balance of the value type (Currency / Points / Custom) as a result of the transaction for the specifed value type.
aztec_id String (255) Y Aztec site ID
aztec_ticket_id String (255) N Unique Aztec reference relating to transaction
sub_total_amount Decimal (18,2) Y Total payment amount posted from Aztec to iZone for the ‘closed’ epos account.
organization_guid Char (36) N Company or site GUID from Platform Services where the transaction was instigated
LastModified Date/Time N The last time the transaction was modified.

The Customer Metrics extract provides spend and visit data for each customer loyalty account across various reporting periods

Two file types are available:

  • Full Export – A complete list of balances for all registered cards. This file will overwrite the previous version each time it is generated

    • Default Naming Convention: customer_metrics_all.csv

  • Delta Export – A dated file containing only changes from the previous day, covering the period midnight to midnight

    • Default Naming Convention: customer_metrics_YYYYMMDD_HHMMSS.csv

Fields
Field Name Data Type Nullable Notes
customer_id String (255) N Unique identifier for each loyalty member
life_spend Decimal (18,2) Y Total spend by customer. Loyalty number must be assigned to the account
7_day_spend Decimal (18,2) N Total spend by customer over previous 7-day period. An export generated on the 10/10/2014 would capture total spend between 03/10/2014 00:00:00 and 09/10/2014 23:59:59
30_day_spend Decimal (18,2) N Total spend by customer over previous 30-day period
90_day_spend Decimal (18,2) N Total spend by customer over previous 90-day period
life_visits INT (32- bit) Y A visit is counted as one closed Aztec account at a location ID
7_day_visits INT (32- bit) N Total visits by customer over previous 7-day period. An export generated on the 10/10/2014 would capture visits between the 03/10/2014 00:00:00 and 09/10/2014 23:59:59
30_day_visits INT (32- bit) N Total visits by customer over previous 30-day period
90_day_visits INT (32- bit) N Total visits by customer over previous 90-day period
12_month_visits INT (32- bit) N Total visits by customer over previous 12-month period
last_visited_date_time Date/Time Y Last time the customer visited a site
last_visited_location_id String (255) Y ID of the last location the customer visited
last_visited_aztec_id String (255) Y ID of the last Aztec system the customer used
home_location_id String (255) Y The ID of the location the customer visits most frequently. If there are locations with equal maximum frequency, the last location the customer visited will be used
home_aztec_id String (255) Y The ID of the Aztec system the customer uses most frequently. If there are locations with equal maximum frequency, the last location the customer visited will be used
frm_score String Y Recency, frequency, and monetary value score. Retired field – no longer populated since March 2015
LastModified Date/Time N The last time the record was modified
Customer_Guid Char (36) N Unique identifier customer GUID supplied by Platform Services
last_visit_site_guid Char (36) N Site GUID from Platform Services
home_location_site_guid Char (36) N Site GUID from Platform Services that is the home location

The Expiry extract lists all loyalty cards with balances due to expire within a specified number of days.

The period (number of days) can be customised in the Loyalty application. When setting this value, please take into account the size of your database, as longer periods will increase file size and processing time

File type:

  • Delta Export – A dated file containing expired balances period specified, covering the period midnight to midnight

    • Default Naming Convention: expiry_all_YYYYMMDD_HHMMSS.csv

Fields
Field Name Data Type Nullable Notes
CompanyId INT (32-bit) N ID of the brand or company
CardId String (20) N ID of the card
ProgramId INT (32-bit) N ID of the program
ValueTypeId INT (32-bit) N ID of the balance type
ValueTypeName String N Currency / Points / Visits / Bespoke
ExpiryAmount Decimal N Value
ExpiryDate Date/Time N

Launchpad Customer Extracts

The iZone Extracts include two customer extracts containing data from the Platform Services (Launchpad) database. To enable these, contact your Zonal Account Representative. Details and field definitions for these extracts are provided below.

A customer record will be stored within Launchpad when it is created or updated as a result of:

  • A Loyalty sign-up

  • Manual customer creation

  • Automatic merging of customer profiles

  • An online reservation via Zonal Bookings (Optional)

  • Editing an existing entry via an application UI or API

Customer merging is by default switched off, please contact your Zonal Account Representative to enable this

The following customer extracts are available:

The Customerextract contains the customer metadata stored in the Platform Services (Launchpad) database.

Two file types are available:

  • Full Export – A complete customer list. This file will overwrite the previous version each time it is generated.

    • Default Naming Convention: customers_all.csv

  • Delta Export – A dated file with only changes from the previous day, covering the period midnight to midnight.

    • Default Naming Convention: customers_YYYYMMDD_HHMMSS.csv

Fields
Field Name Data Type Nullable Notes
customer_id String (255) N Unique identifier for each loyalty member
title String (20) Y
first_name String (255) Y
last_name String (255) Y
date_of_birth Date Y Will only complete if all elements day, month and year are added.
gender String (10) Y Up to 10 chars. No restrictions. If using the Loyalty Widgets, values are Male, Female or Null (for not specified)
occupation String (255) Y
address_1 String (255) Y
address_2 String (255) Y
address_3 String (255) Y
city String (255) Y
postcode String (20) Y
county String (20) Y
country String (255) Y
email_1 String (255) Y First contact e-mail address entered. Customers may have multiple email addresses linked to their profile. Each is recorded as a separate alias.
email_1_opt_in Char (1) Y “Y” = Yes “N” = No
email_2 String (255) Y
email_2_opt_in Char (1) Y “Y” = Yes “N” = No
email_3 String (255) Y
email_3_opt_in Char (1) Y “Y” = Yes “N” = No
mobile_1 String (255) Y Customers may have multiple mobile number linked to their profile. Each is recorded as a separate alias.
mobile_1_opt_in Char (1) Y “Y” = Yes “N” = No
mobile_2 String (255) Y
mobile_2_opt_in Char (1) Y “Y” = Yes “N” = No
mobile_3 String (255) Y
mobile_3_opt_in Char (1) Y “Y” = Yes “N” = No
phone String (255) Y
custom_1_label String (255) Y
custom_1_value String (255) Y
custom_2_label String (255) Y
custom_2_value String (255) Y
custom_3_label String (255) Y
custom_3_value String (255) Y
custom_4_label String (255) Y
custom_4_value String (255) Y
custom_5_label String (255) Y
custom_5_value String (255) Y
day_of_birth Char (2) Y
month_of_birth String (32) Y
year_of_birth String (32) Y
LastModified Date/time N Date the Customers was last modified
Customer_Guid Char (36) Y GUID supplied by Platform Services
external_customer_id String (255) N Unique external identifier used when importing data

The Customer Consent extract provides a complete audit of consent information stored for each customer, broken down by data type.

This extract is intended to be used alongside the Customers Extract. Customers can be matched across both files using the customer_guid identifier.

Two file types are available:

  • Full Export – A complete record of all customer consent data. This file will overwrite the previous version each time it is generated

    • Default Naming Convention: customers_consent_all.csv

  • Delta Export – A dated file containing only changes from the previous day, covering midnight to midnight

    • Default Naming Convention: customers_consent_YYYYMMDD_HHMMSS.csv

If a customer record has been updated from multiple application sources (e.g., Loyalty and Zonal Bookings), the extract will show multiple entries for that customer. This ensures a full audit of where and how consent has been obtained
Fields
Field Name Data Type Nullable Notes
customer_guid Char (36) N GUID supplied by Platform Services
application String (255) Y Name of application consent was captured from. If Loyalty will display Loyalty
outlet_type String (255) Y Type of outlet consent was captured from. Estate/Company/Site. This field will be blank until future work has been completed
outlet_name String (255) Y Name of outlet consent was captured from. This field will be blank until future work has been completed
outlet_guid Char (36) Y Outlet GUID supplied by Platform Services. This field will be blank until future work has been completed
email_1 String (255) Y First contact e-mail address captured. Customers may have multiple email addresses linked to their profile. Each is recorded as a separate alias
email_1_optin Char (1) Y “Y” = Yes “N” = No
email_1_optin_lastmodified Date/time Y

Last modified date. yyyy/mm/dd HH:MM:SS format (UTC)
email_1_optin_channel String (255) Y Which channel consent was captured via. Only populated for "Loyalty" channels - future work will be undertaken to provide liveRES channels
email_2   Y
email_2_optin Char (1) Y “Y” = Yes “N” = No
email_2_optin_lastmodified Date/time Y Last modified date. yyyy/mm/dd HH:MM:SS format (UTC)
email_2_optin_channel String (255) Y
email_3 String (255) Y
email_3_optin Char (1) Y “Y” = Yes “N” = No
email_3_optin_lastmodified Date/time Y Last modified date. yyyy/mm/dd HH:MM:SS format (UTC)
email_3_optin_channel String (255) Y
mobile_1 String (255) Y First contact mobile number entered. Customers may have multiple contact number. linked to their profile. Each is recorded as a separate alias
mobile_1_sms_optin Char (1) Y “Y” = Yes “N” = No
mobile_1_sms_optin _lastmodified Date/time Y Last modified date. yyyy/mm/dd HH:MM:SS format (UTC)
mobile_1_sms_optin_channel String (255) Y
mobile_2 String (255) Y
mobile_2_ sms_optin Char (1) Y “Y” = Yes “N” = No
mobile_2_ sms_optin _lastmodified Date/time Y Last modified date. yyyy/mm/dd HH:MM:SS format (UTC)
mobile_2_ sms_optin_channel String (255) Y
mobile_3 String (255) Y
mobile_3_ sms_optin Char (1) Y “Y” = Yes “N” = No
mobile_3_ sms_optin _lastmodified Date/time Y Last modified date. yyyy/mm/dd HH:MM:SS format (UTC)
mobile_3_ sms_optin_channel String (255) Y
mobile_1_phonecall_optin Char (1) Y “Y” = Yes “N” = No
mobile_1_phonecall_optin _lastmodified Date/time Y Last modified date. yyyy/mm/dd HH:MM:SS format (UTC)
mobile_1_phonecall_optin_channel String (255) Y
mobile_2_ phonecall_optin Char (1) Y “Y” = Yes “N” = No
mobile_2_ phonecall_optin _lastmodified Date/time Y Last modified date. yyyy/mm/dd HH:MM:SS format (UTC)
mobile_2_ phonecall_optin_channel String (255) Y
mobile_3_ phonecall_optin Char (1) Y “Y” = Yes “N” = No
mobile_3_ phonecall_optin _lastmodified Date/time Y Last modified date. yyyy/mm/dd HH:MM:SS format (UTC)
mobile_3_ phonecall_optin_channel String (255) Y
phone String (255) Y Mapped to “Home” phone number in Launchpad
phone_optin Char (1) Y “Y” = Yes “N” = No
phone_optin_lastmodified Date/time Y Last modified date. yyyy/mm/dd HH:MM:SS format (UTC)
phone_optin_channel String (255) Y
postal_address String (255) Y First line of address
postal_optin Char (1) Y “Y” = Yes “N” = No
postal_optin_lastmodified Date/time Y Last modified date. yyyy/mm/dd HH:MM:SS format (UTC)
postal_optin_channel String (255) Y
profiling_optin Char (1) Y “Y” = Yes “N” = No
profiling_optin_lastmodified Date/time Y Last modified date. yyyy/mm/dd HH:MM:SS format (UTC)
profiling_optin_channel String (255) Y
push_optin Char (1) Y “Y” = Yes “N” = No
push_optin_lastmodified Date/time Y Last modified date. yyyy/mm/dd HH:MM:SS format (UTC)
push_optin_channel String (255) Y
