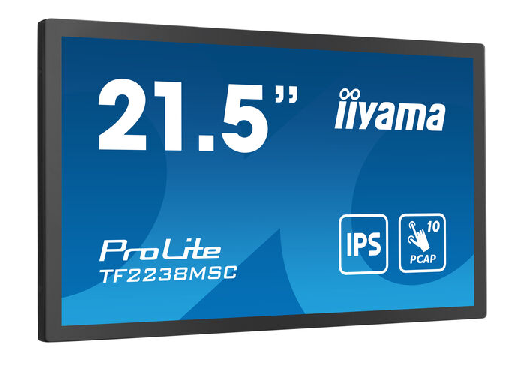

PCLCD22-T
22" Touch Screen Monitor
Multi-Touch monitor with IPS panel technology, metal body and edge-to-edge glass for a robust kitchen screen solution.
Product Details
| General |
Diagonal Size |
21.5" |
| Resolution | 1920 x 1080 (Full HD) | |
| Aspect Ratio | 16:9 | |
| Brightness | 600 cd/m² | |
| Viewing Angle |
178° x 178° |
|
| Audio | 2 x 2W Speakers | |
|
Vesa Mounting |
100mm | |
| Touch | Yes | |
| Touch Method | stylus, finger, glove | |
| Interfaces | HDMI | Display Port | USB | |

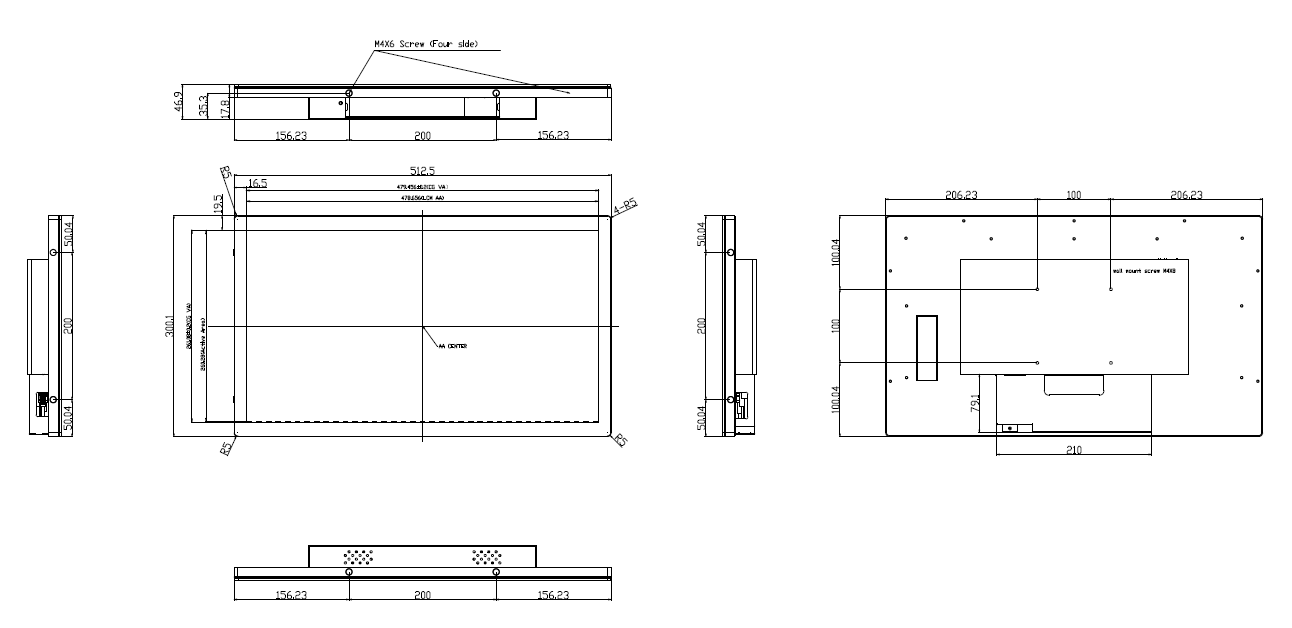

| Physical | Dimensions |
512 mm x 300 mm x 47 mm |
| Weight |
5.1 kg |
|
| Power | Internal |
Input: AC 100 - 240V, 50/60Hz |
| Environmental | Operating |
0°C to 40°C | 20 to 80% Relative Humidity |
| Storage |
- |
|
| Certifications | - |
CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus |
| Box Contents | Contents |
Monitor | HDMI Cable | Power Cord | USB Cable |
| Weight | 6.4 kg |
Images
Documentation
| Source | Information |
|---|---|
| iiyama |
Accessories & Spares
| Item | Part Number | Status | |
|---|---|---|---|
|
|

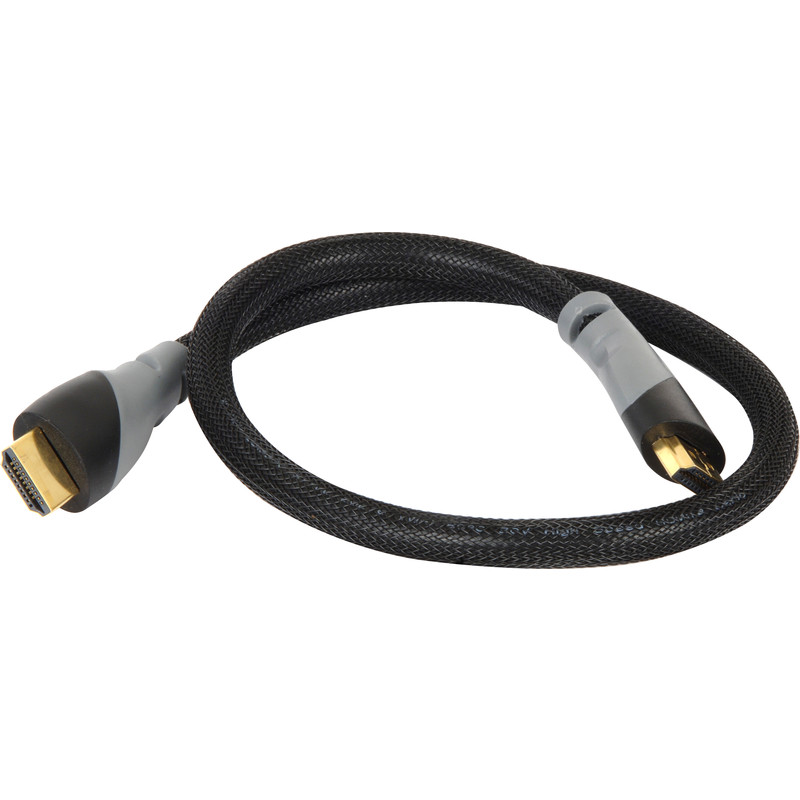

HDMI Cable 0.5m | PCLCD-CBL-HDMI-0M5 | • Active |
|
HDMI Cable 2m | PCLCD-CBL-HDMI-2M0 | • Active |
|

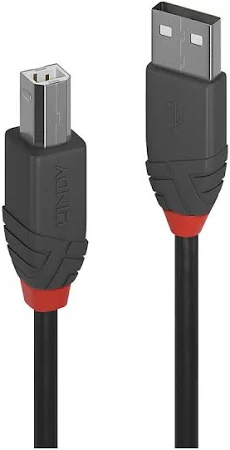

USB Type-B to Type-A 1.8m | LDUSB | • Active |
|
Mains Cable, 2m | LD4010 | • Active |
|

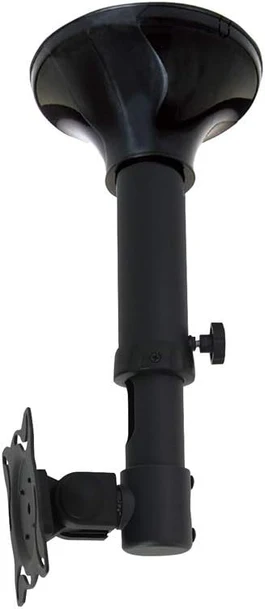

Monitor Ceiling Pole, Short (37mm to 470mm) | KSLCDCSHRTBRK | • Active |
|

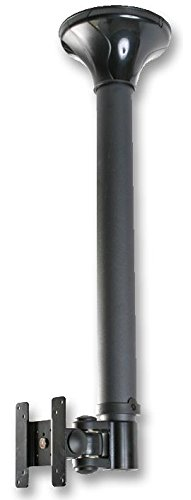

Monitor Ceiling Pole, Long (37mm to 470mm) | KSLCDCLONGBRK | • Active |
