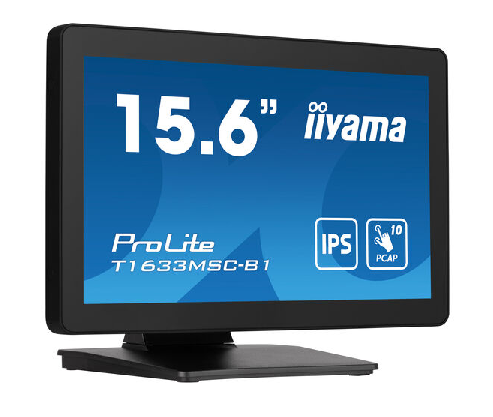

PCLCD16-T
15.6" Touch Screen Monitor
Multi-Touch monitor with IPS panel technology and edge-to-edge glass for a robust kitchen screen solution.
Product Details
| General |
Diagonal Size |
15.6" |
| Resolution | 1920 x 1080 | |
| Aspect Ratio | 16:9 | |
| Brightness | 450 cd/m² | |
| Viewing Angle |
178° x 178° |
|
| Audio | 2 x 2W Speakers | |
|
Vesa Mounting |
100mm | |
| Touch | Yes | |
| Touch Method | stylus, finger, glove | |
| Interfaces | HDMI | Display Port | USB | |

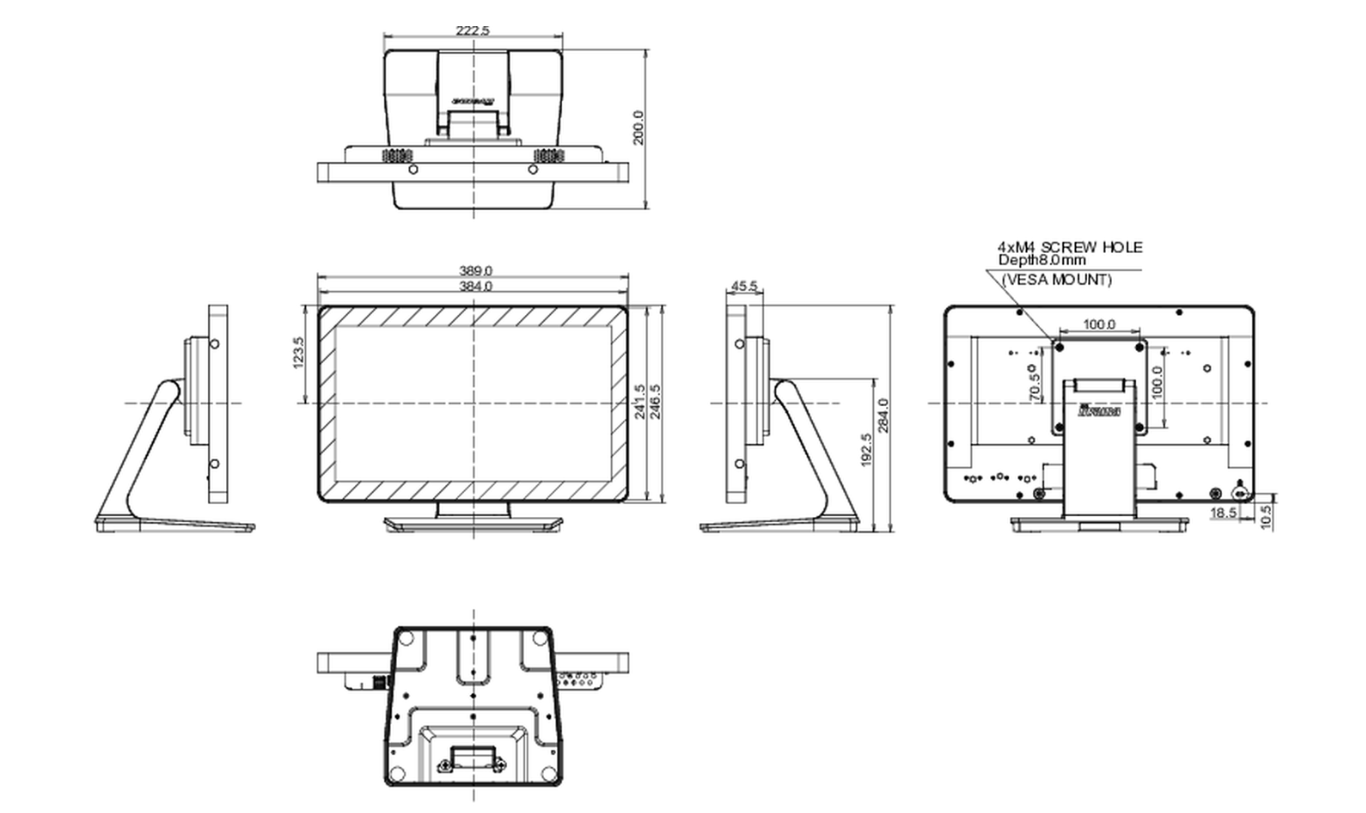

| Physical | Dimensions |
389 mm x 247 mm x 200 mm (with stand) 389 mm x 247 mm x 46 mm (without stand) |
| Weight |
3.4 kg (with stand) 2.0 kg (without stand) |
|
| Power | External |
Input: AC 100 - 240V, 50/60Hz | Ouput: 12Vdc, 3.75 A |
| Environmental | Operating |
0°C to 40°C | 20 to 80% Relative Humidity |
| Storage |
-20°C to 60°C | 10 to 90% Relative Humidity |
|
| Certifications | - |
CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus |
| Box Contents | Contents |
Monitor | HDMI Cable | Power Cord | USB Cable |
| Weight | 6 kg |
Images
Documentation
| Source | Information |
|---|---|
| iiyama |
Accessories & Spares
| Item | Part Number | Status | |
|---|---|---|---|
|
|
HDMI Cable 0.5m | PCLCD-CBL-HDMI-0M5 | • Active |
|
HDMI Cable 2m | PCLCD-CBL-HDMI-2M0 | • Active |
|
USB Type-B to Type-A 1.8m | LDUSB | • Active |
|
Mains Cable, 2m | LD4010 | • Active |
|
Monitor Ceiling Pole, Short (37mm to 470mm) | KSLCDCSHRTBRK | • Active |
|
Monitor Ceiling Pole, Long (37mm to 470mm) | KSLCDCLONGBRK | • Active |
