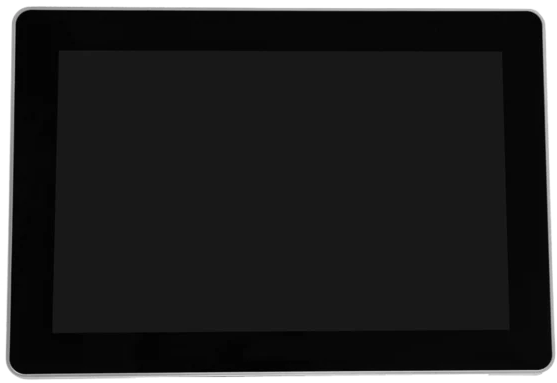

PCLCD10-T
MIMO 10.1" Touch Screen
10.1" touch screen with single USB interface for video, touch and power and integrated speakers.
Product Details
| General |
Diagonal Size |
10.1" |
| Resolution | 1280 x 800 | |
| Aspect Ratio | 16:10 | |
| Brightness | 350cd/m2 | |
| Viewing Angles |
85° / 85° / 85° / 85° |
|
|
Vesa Mounting |
75mm | |
| Touch | yes | |
| Interfaces | USB (Mini Type - B) | |
| Physical | Dimensions | 260 x 180 x 19 mm |
| Weight | 0.7 kg | |
| Power | <Power Type> |
5Vdc via USB minu Type-B |
| Environmental | Operating |
-10°c to 50°C |
| Storage |
- |
|
| Certifications | - |
FCC, CE, ROHS, UKCA |
| Box Contents | Contents |
Display Type-A to Mini Type-B USB Cable |
| Weight | 1.2 kg |
Images
Documentation
| Source | Information |
|---|---|
| Mimo Monitors |
Accessories & Spares
| Item | Part Number | Status | |
|---|---|---|---|
|
|

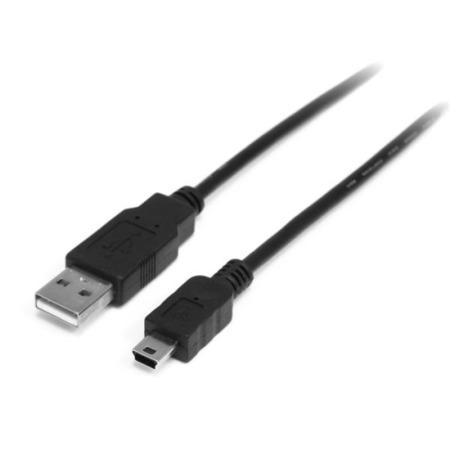

USB Type-A to mini, 1.8m | LDUSB02 | • Active |
|
MOUNT06 | MOUNT06 | • Active |
|

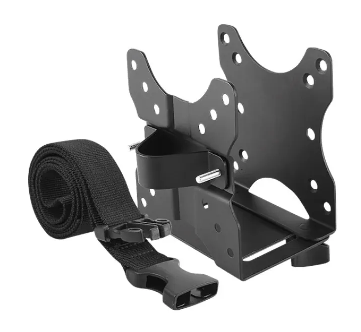

KSLCDBRK4 | KSLCDBRK4 | • Active |
