PRN30-NS

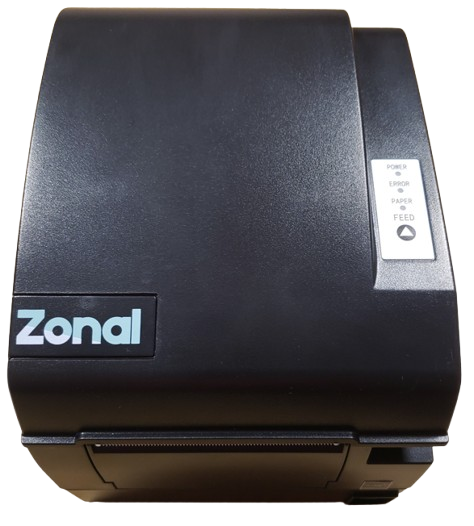

BTP-R580II 80mm thermal reciept printer (Serial)
Zonal standard thermal printer with serial Interface. Robust and splash resistant.

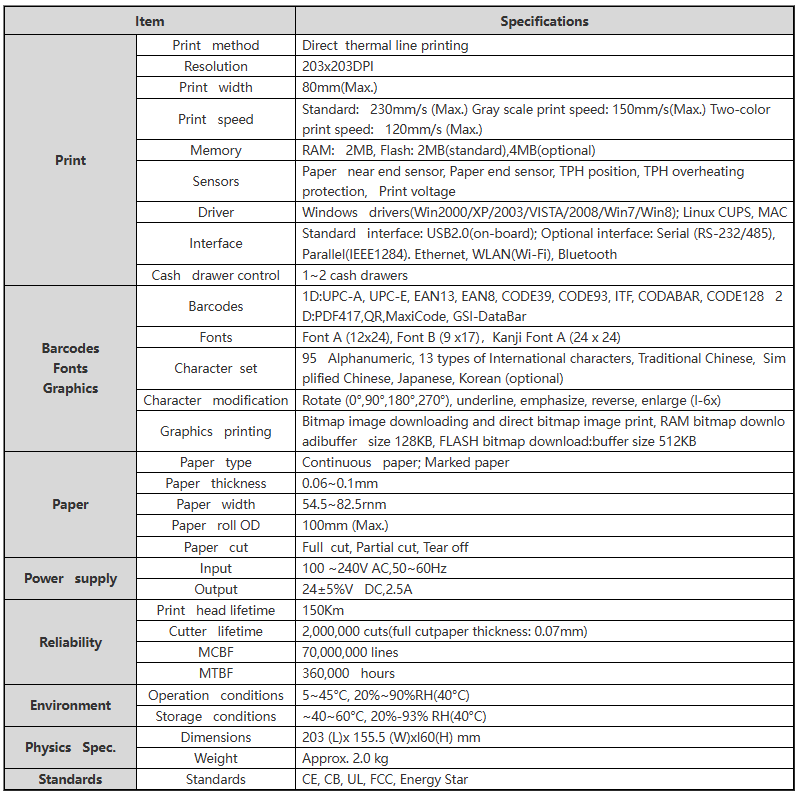

Product Details
| General |
Print Width |
80mm (Max.) |
| Print Speed | Standard: 230mm/s (Max.) Gray scale print speed: 150mm/s(Max.) Two-color print speed: 120mm/s (Max.) | |
| Resolution | 203x203DPI | |
| Interfaces | Serial RS232 (Zonal RJ45 connection) | Cash Drawer | |
| Paper Dimensions | Width: 54.5~82.5rnm OD: 100mm max | |
| Paper Thickness |
0.06~0.1mm Multi-layer paper (l original+1 copy): 0.05-0.08mm total thickness<0.14 mm |
|
| Paper Cut | Full cut, Partial cut, Tear off | |
| Physical | Dimensions | 203 x 160 x 155.5 mm |
| Weight | 2.0kg | |
| Colour | Black | |
| Power | Input |
-40~60°C, 20%-93% RH(40°C) |
| Output | 24±5%V DC,1.5A | |
| Environmental | Operating |
5~45°C, 20%-90% RH(40°C) |
| Storage |
-40~60°C, 20%-93% RH(40°C) |
|
| Certifications | - |
Energy Star CE Certificate (EMC) | CE Certificate (LVD) | FCC Certificate | UKCA Certificate (Safety) | UKCA Certificate (EMC) | UL Certificate |
| Box Contents | Contents |
Printer Paper Roll UK Mains Lead |
| Weight | - |
Images
Documentation
| Source | Information |
|---|---|
| Manufactures Website | |
| Zonal |
For QR Code printing the printer needs to be on a Main Firmware Version 3.050 or above. |
Accessories & Spares
| Item | Part Number | Status | |
|---|---|---|---|
|
Thermal Paper Roll, 80mm box of 20 | PAPT6 | • Active |
|
Mains Cable | LD4010 | • Active |
|
Replacement Power Supply, 24Vdc 1.5A | PRN32-PSU | • Active |
|
RJ45 to 9 Pin D-Type Adaptor | LDAD14 | • Active |
|
CAT 5 STP CBL 1M Grey | LDC505 | • Active |
|
Replacement Ethernet Interface Card | PRNIF-IP | • Active |
|
|
Replacement Serial Interface Card (RJ45) | RNRJ45IF | • Active |
