COMT-EPSONTM88V-S

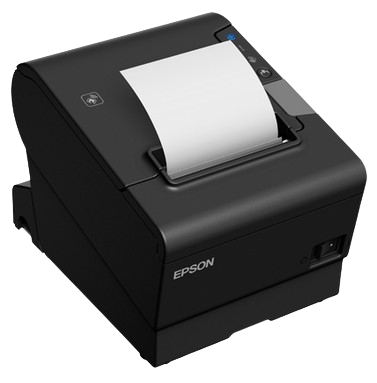

EPSON thermal receipt printer
Versatile 80mm thermal receipt printer with 25 Pin serial Interface.
Product Details
| General |
Print Width |
80 mm width paper printing: 79.5 ± 0.5 mm (3.13 ± 0.02") 58 mm width paper printing: 57.5 ± 0.5 mm (2.26 ± 0.02") |
| Print Speed | ||
| Resolution | 180 × 180 dpi | |
| Interfaces |
RS232 (25 Pin D-Type Female) USB 2.0 Type-B Ethernet interface (100 Base-TX / 10 Base-T) Cash Drawer DC 24 V ± 7% |
|
| Paper Dimensions | 80mm and 58mm width | |
| Paper Thickness | Maximum of 80 µm, minimum of 48 µm | |
| Paper Cut | Partial Cut (cutting with one point in left edge left uncut) | |
| Physical | Dimensions | 145 × 195 × 148 mm (5.71 × 7.68 × 5.83") |
| Weight | 1.7kg | |
| Colour | Black | |
| Power | Input |
Input: 100 - 240V ~ 50-60Hz |
| Output | Output: 24VDC, 2.1A | |
| Environmental | Operating |
5 to 45°C (41 to 113°F), 10 to 90% RH |
| Storage |
-10 to 50°C {14 to 122°F}, 10 to 90% RH |
|
| Certifications | - |
ENERGY STAR Compliant |
| Box Contents | Contents |
TM-T88 Printer Connector Cover Main unit PSU AC cable Paper spacer Power switch cover Roll paper Setup guide Warranty document |
| Weight | - |
Images
Documentation
| Source | Information |
|---|---|
| Manufactures Website |
Accessories & Spares
| Item | Part Number | Status | |
|---|---|---|---|
|
80mm (w) x 80mm (dia) Thermal Paper Roll (Box of 20) | PAPT6 | • Active |
|
CAT 5 STP CBL 1M Grey | LDC505 | • Active |
|
Mains Cable | LD4010 | • Active |
|

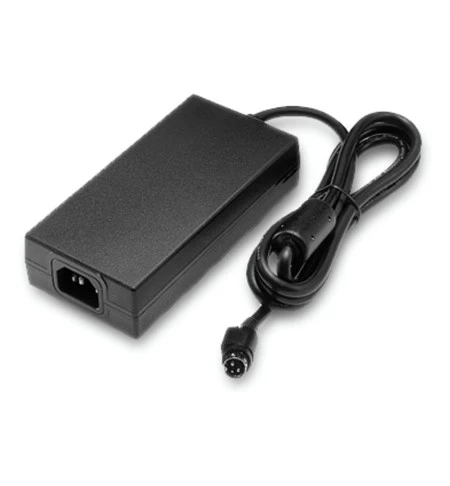

Replacement EPSON 24V PSU | COMT-PS170-S | • Active |
|

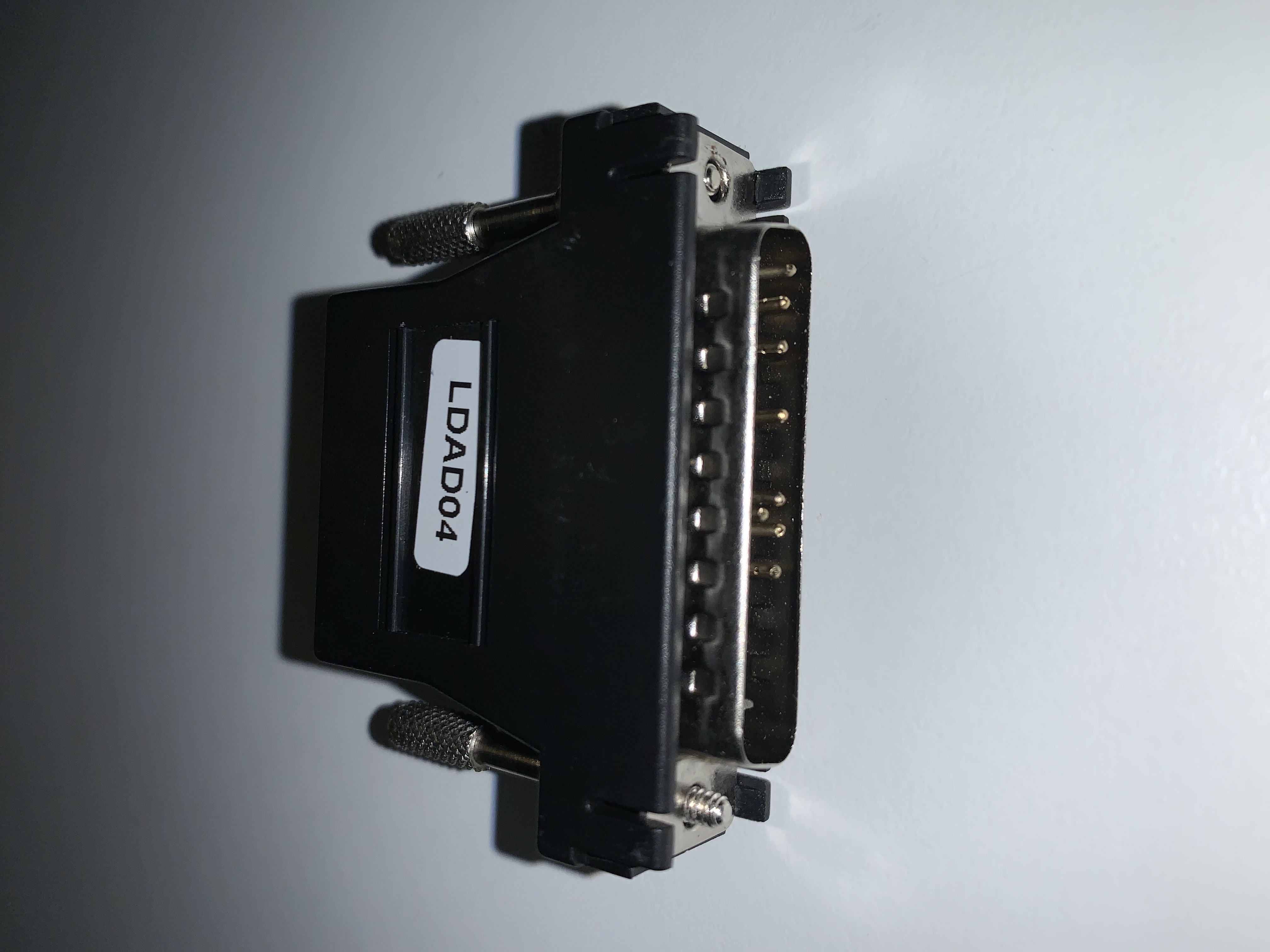

25 Pin D-Type to Zonal RJ45 Serial Dongle | LDAD004 | • Active |
|

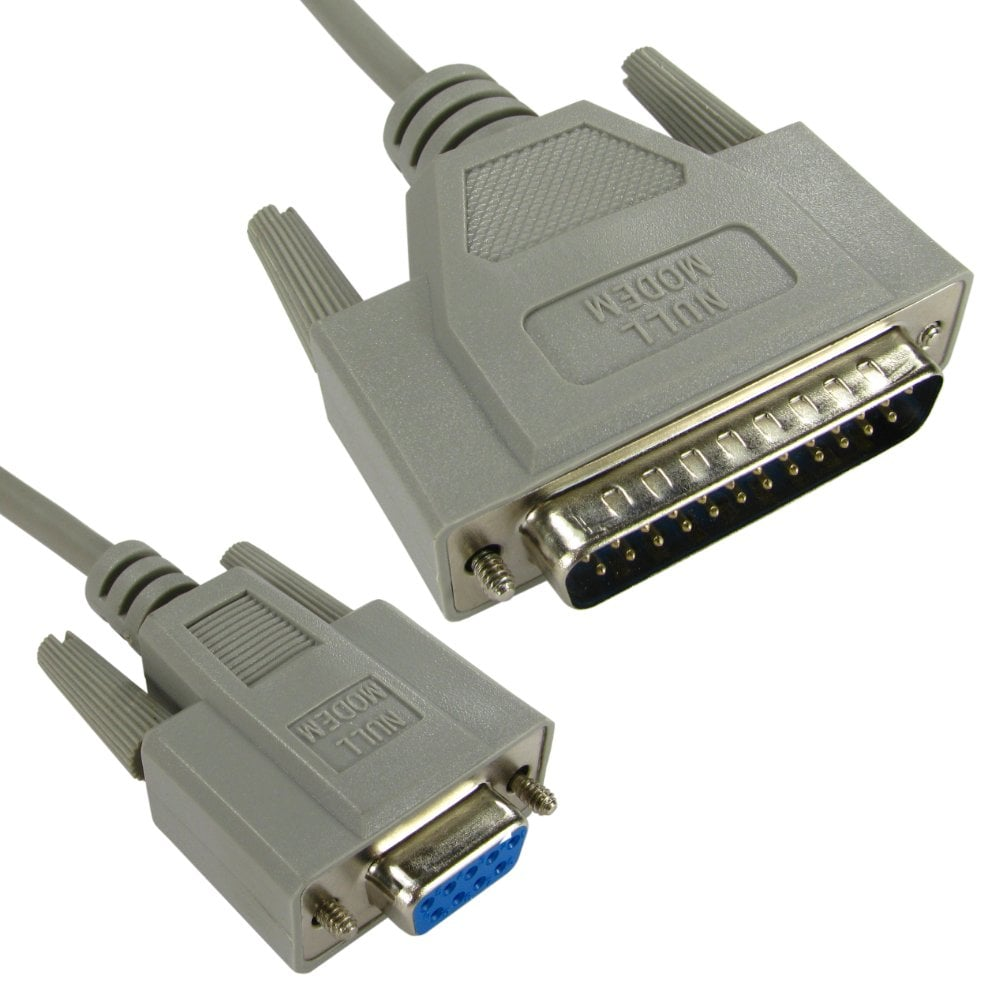

25 Way D-Type to 9Way D-Type Serial Cable. | LD3054 | • Active |
