Z9-TERM-WIN

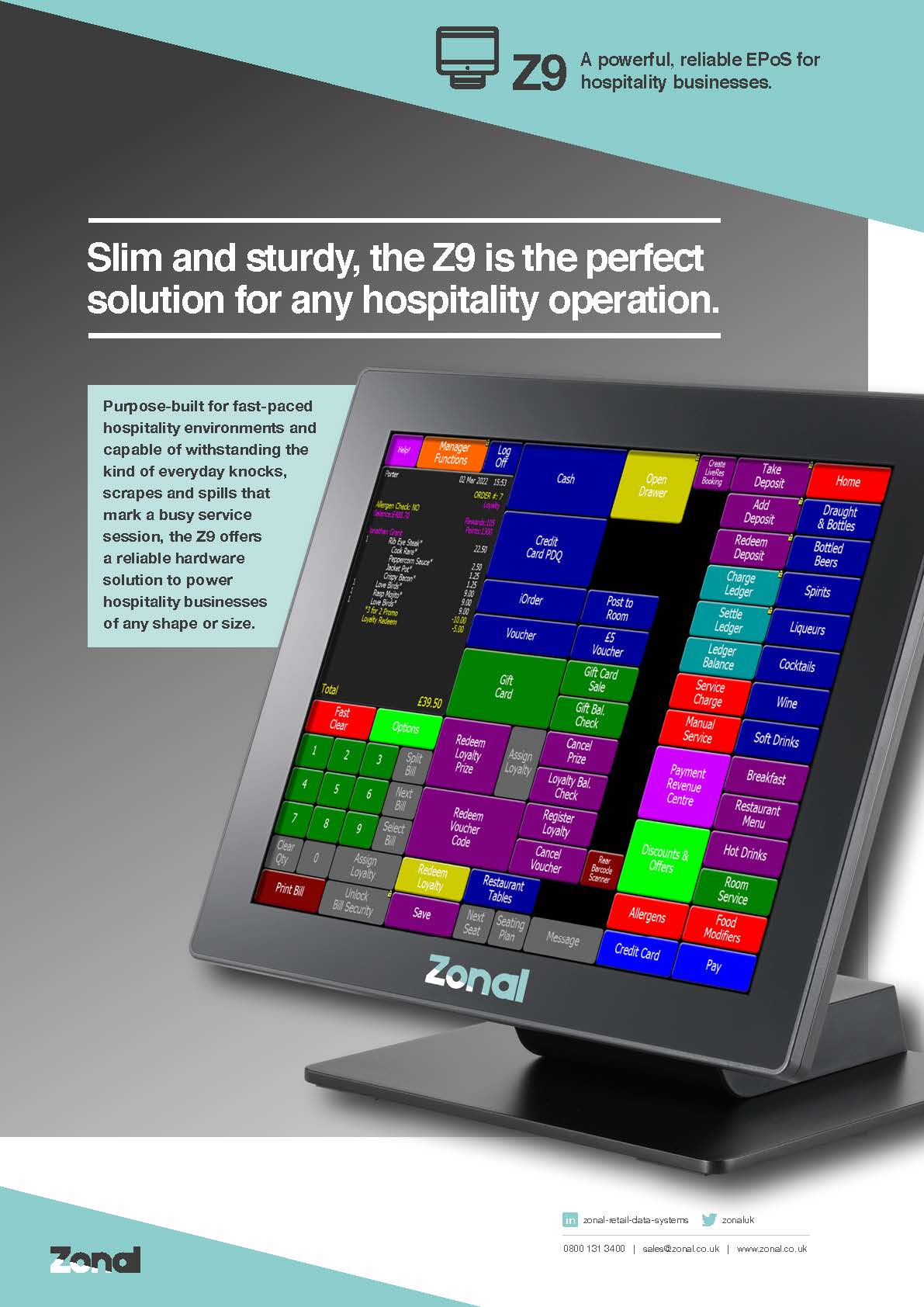

Z9 POS Terminal
POS Terminal with WIN 10 OS and the power of Aztec.
Product Details
| General |
CPU |
Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache |
| RAM |
4GB DDR4 SO-DIMM (max 32GB) |
|
| Storage |
128GB M.2 SSD ** Upgradeable |
|
| Operating System |
Windows 10 IOT LTSC ** Windows 11 compatible |
|
| Connectivity |
1 x RS232 RJ50 Serial Ports (5V/12V Support) (RJ50-DB9 adaptor supplied) 1 x RS232 DB9 Serial Ports (5V/12V Support) 2 x USB 3.0 Type A 3 x USB 2.0 Type A 1 x 10/100/1000 Mb RJ45 LAN Port 1 x Mini Display Port 1 x M.2 Expansion Slot 1 x 24Vdc Cash Drawer Port (RJ11) ** Optinal WIFI and BT interfaces available |
|
| Touch |
True Flat PCAP touch with multi-touch support |
|
| Security | TPM2.0 Support | |
| Display | 15" TFT | 1024x768 | 4:3 Aspect Ratio | Edge to Edge G=glass | |
| Camera |
Server facing camera for QR/Bar Code scanning ** Optional customer facing camera with Z9-ADM-SCRN |
|
| Physical | Dimensions | 368mm x 207mm x325mm (14.5in x 8.15in x 9.25in) |
| Weight | 5.4Kg | |
| Power | External |
Input: 100-240Vac, 2.5A, 50-60Hz | Output: 12Vdc, 7A |
| Environmental | Operating |
Temperature: 0°C - 40°C | Humidity: 20%RH - 90%RH | IP65 (Front Only) |
| Storage |
Temperature: -20°C - 70°C | Humidity: 10%RH - 90%RH | IP65 (Front Only) |
|
| Certifications | - |

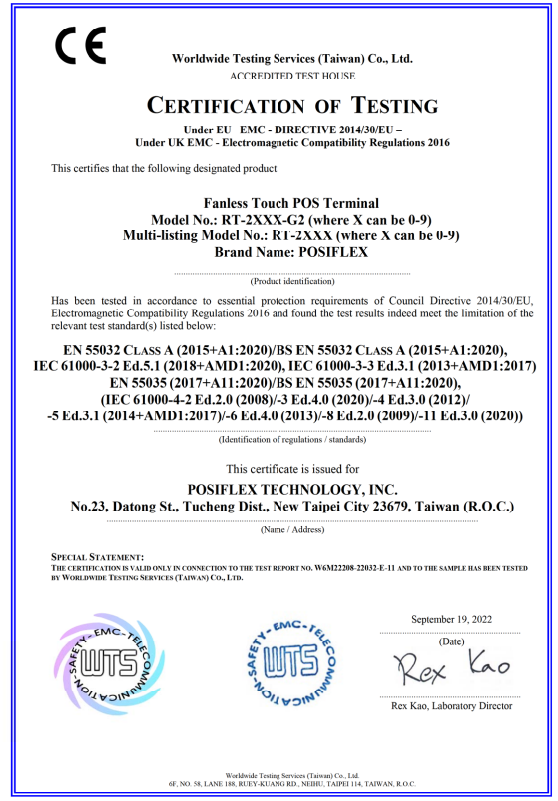

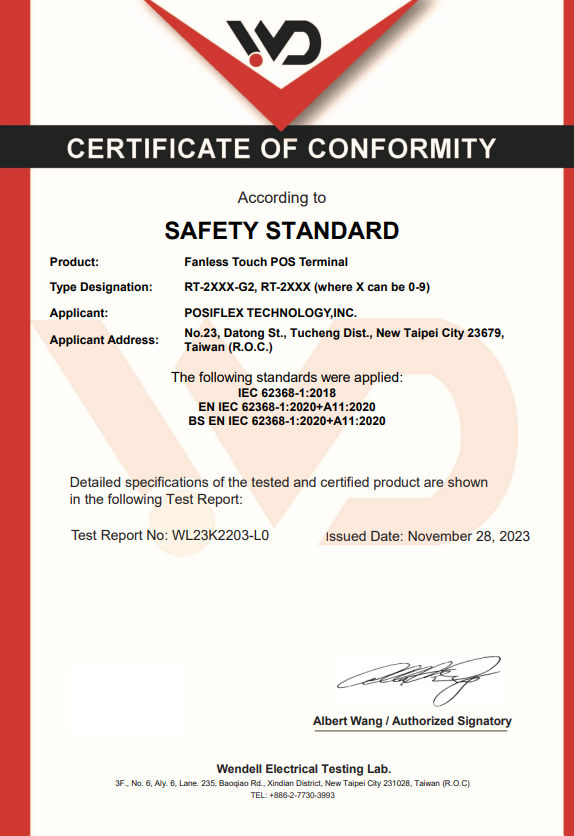

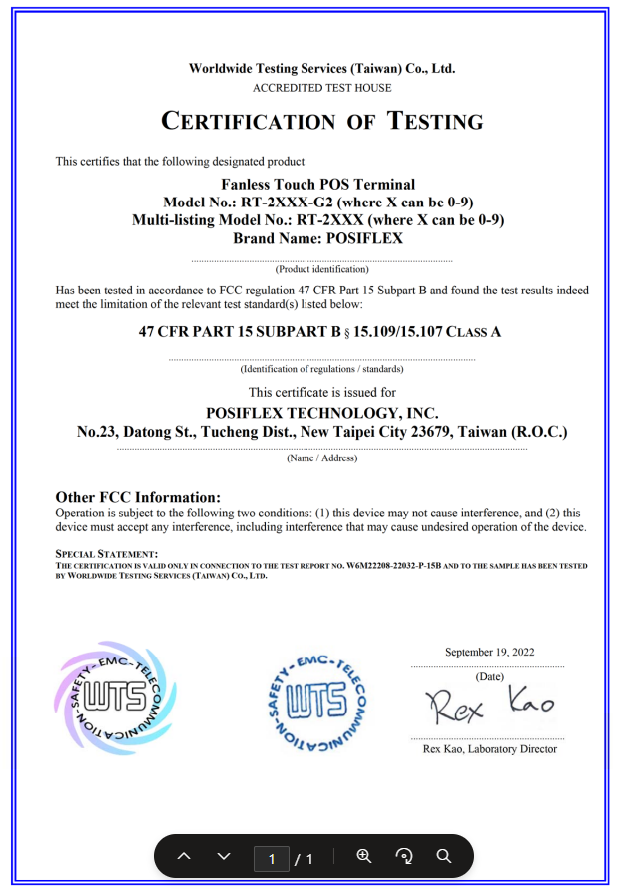

UKCA, CE, FCC, EAC |
| Box Contents | Contents |
1 x Z9 Terminal (Fitted With Accessories where requested) 1 x PSU (Z9-PSU-84W) 1 x Mains Cable (LD4010) 1 x RJ50 - DB9 Adaptor (Z9-SERIAL-ADPT) 1 x LDAD14 |
| Weight | 6 kg |
Images
Available Configurations
| Z9 Terminal Fitted with | Part Number | Status |
|---|---|---|
|
No accessories. Terminal Only |
Z9-TERM-WIN |
• Active |
| Dallas Key / Magnetic Swipe Reader only | Z9-TERM-WIN-DKR | • Active |
| 2 Line Scrolling VFD Display only | Z9-TERM-2L | • Active |
|
Dallas Key / Magnetic Swipe Reader and 2 Line Display |
Z9-TERM-WIN-DKR-2L | • Active |
|
10" AdMargin Screen (with camera) only |
Z9-TERM-AD | • Active |
| Dallas Key / Magnetic Swipe Reader and 10" AdMargin Screen (with camera) | Z9-TERM-WIN-DKR-AD | • Active |
Documentation
| Source | Information |
|---|---|
| Zonal |
Accessories & Spares
| Item | Part Number | Status | |
|---|---|---|---|
|
|

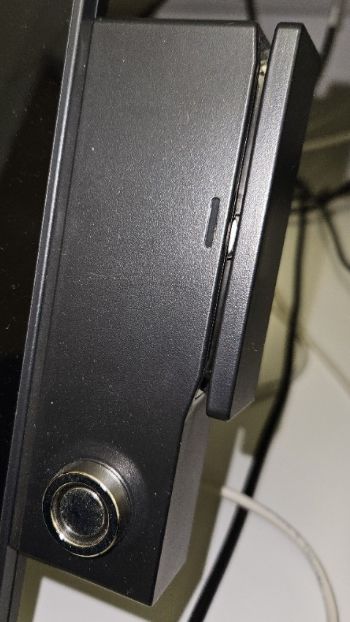

Combined MSR and Dallas Key Reader (Non Magnetic) | Z9-DALLAS-MSR | |
|

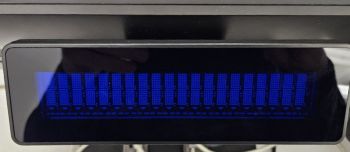

2 Line Customer Facing VFD Display | Z9-2LINE-DISP | |
|

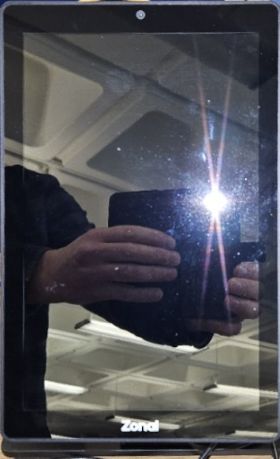

10" Customer Facing Display (AdMargin Screen) | Z9-ADM-SCRN | |
|
Wall / VESA Mounting Kit | Z9-WALL-BRKT | |
|
Bar Mounting Kit | Z9-BAR-BRKT | |
|
9 Pin D-Type Female to 8 Pin RJ45 Serial Adapter | LDAD14 | |
|
RJ50 to DB9 Serial Adaptor | Z9-SERIAL-ADPT | |
|

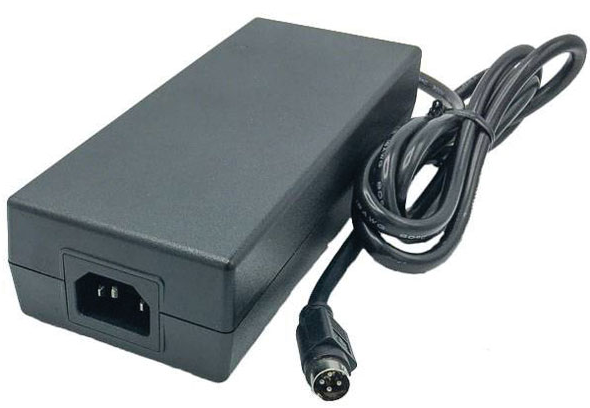

Z9 84W PSU | Z9-PSU-84W | |
|

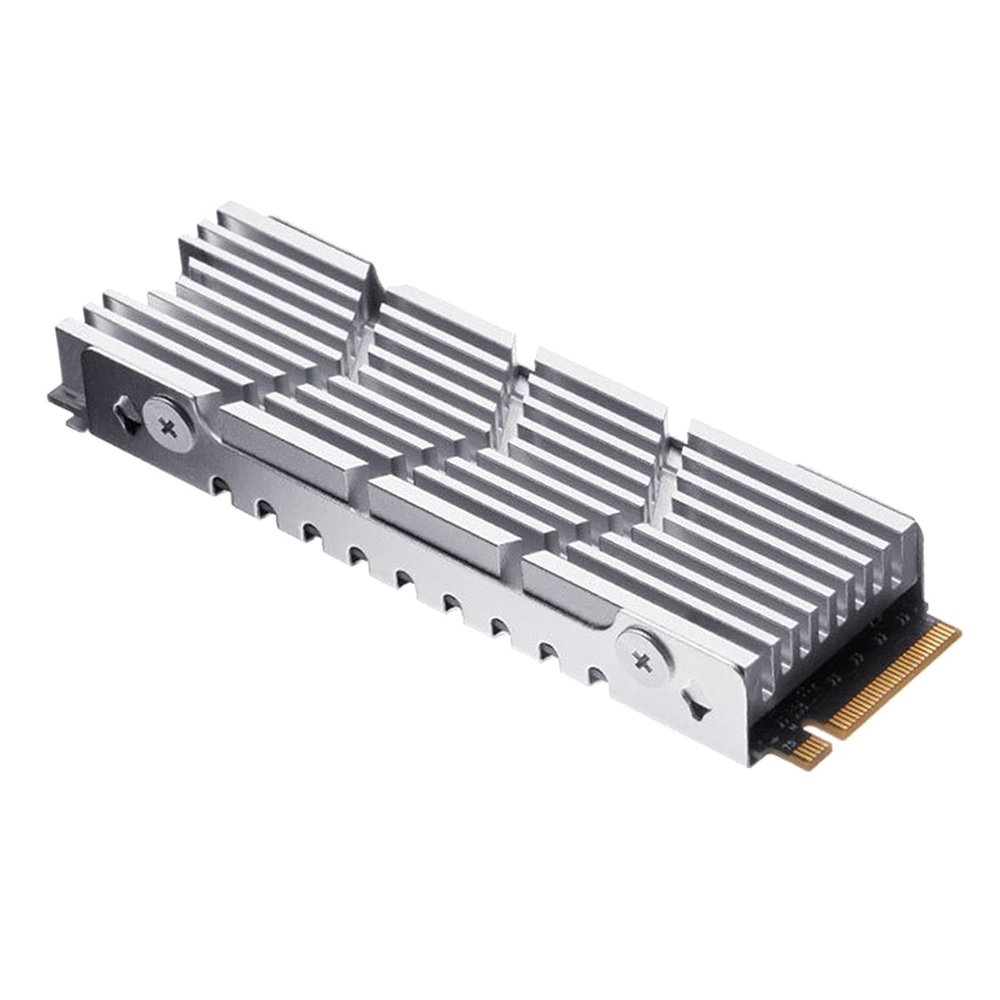

128GB SSD with M.2 Interface and Integrated Heat Sink | SSD-M2-128G |
