EPOS-SERVER-IOT

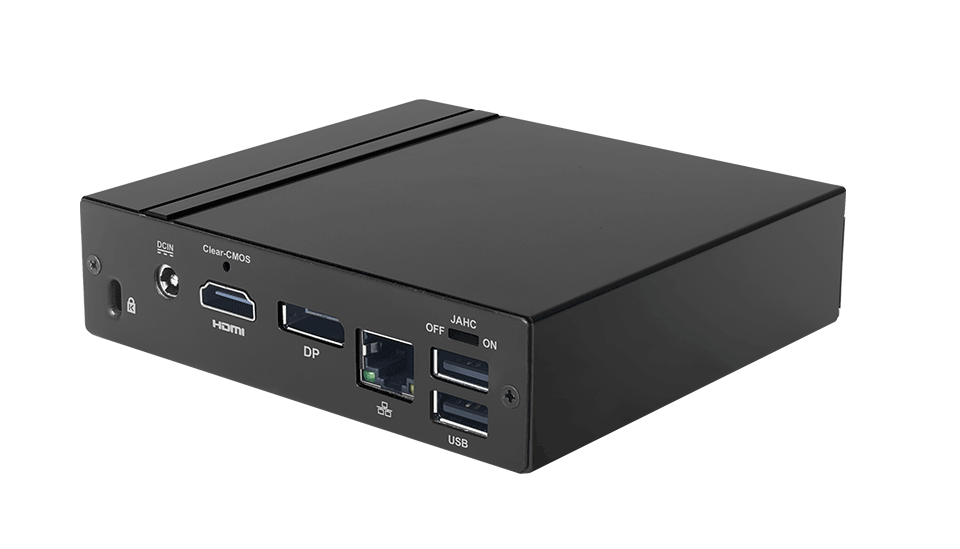

GIADA VM23 Single Board Computer (SBC)
POS Terminal with WIN 10 LTSC and the power of Aztec
Product Details
| General |
CPU |
Intel Celeron N3350 | Dual Core | 2.2GHz |
| RAM | 4GB LPDDR4 (On Board) | |
| Storage |
64GB on board eMMC | (1 x Full Size Mini-PCIe for MSATA) |
|
| Operating System |
Windows 10 2022 IOT LTSC (Meets minimum hardware requirements for future MS Upgrades) |
|
| Connectivity |
1 x Gigabit Ethernet 2 x USB-2.0 Type-A 2 x USB-3.2 Type-A 1 x RS232 Serial Port (i.e Receipt/Kitchen Printers) Optional: 2nd and 3rd serial port using USB to RS232 adaptors. |
|
| Display Interface |
1 x HDMI (max 3840 x 2160) 1 x Display Port (Max 4096 x 2304) |
|
| Security | TPM 2.0 | |
| Display | N/A | |
| Camera | N/A | |
| Physical | Dimensions | 116mm x 107mm x 30mm |
| Weight | TBA | |
| Power | External |
Input:110 -240Vac, 50-60Hz, 1A | Output: 12 VDC, 2.0 A |
| Environmental | Operating |
Temperature 0°C ~40°C (32°F~122°F) @0.7m/s Air Flow | Humidity: 95% @ 40C (Non Condensing) |
| Storage |
Temperature 0°C ~60°C (32°F~140°F)] | Humidity: 95% @ 40C (Non Condensing) |
|
| Certifications | - |
CE, FCC Class B, UKCA |
| Box Contents | Contents |
VM23 PSU UK Mains Lead VESA Bracket Security Tab Fixing Kit |
| Weight | TBA |
Images
Documentation
| Source | Information |
|---|---|
| Giada Tech | Data Sheet |
Accessories & Spares
| Item | Part Number | Status | |
|---|---|---|---|
|
|

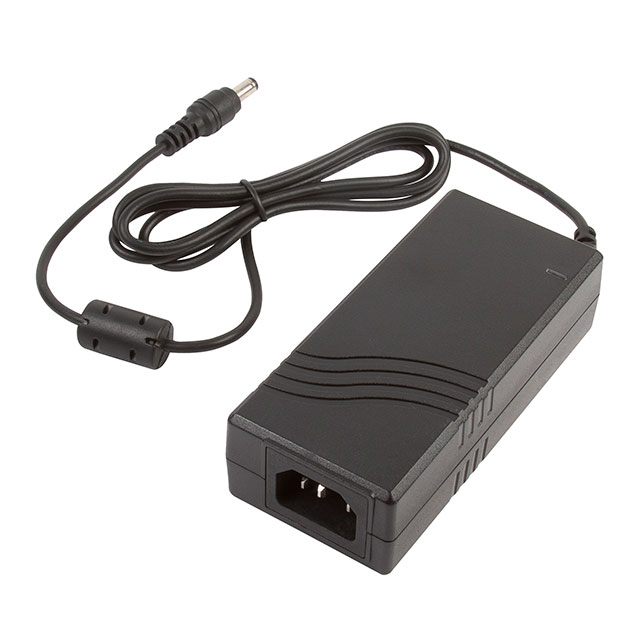

100/240 VAC, 12VDC 5.4A Power Supply | 0950-0009 | • Active |
|

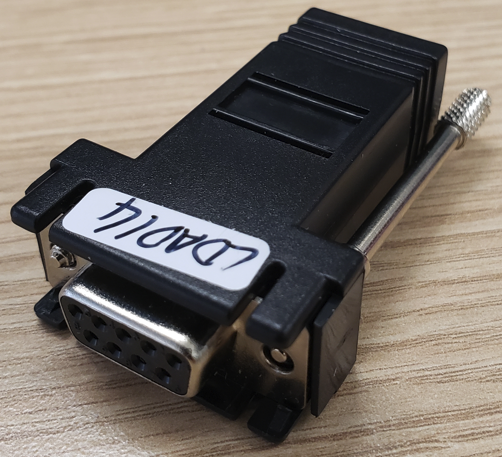

RS232 to RJ45 Serial Adaptor | LDAD14 | • Active |
|

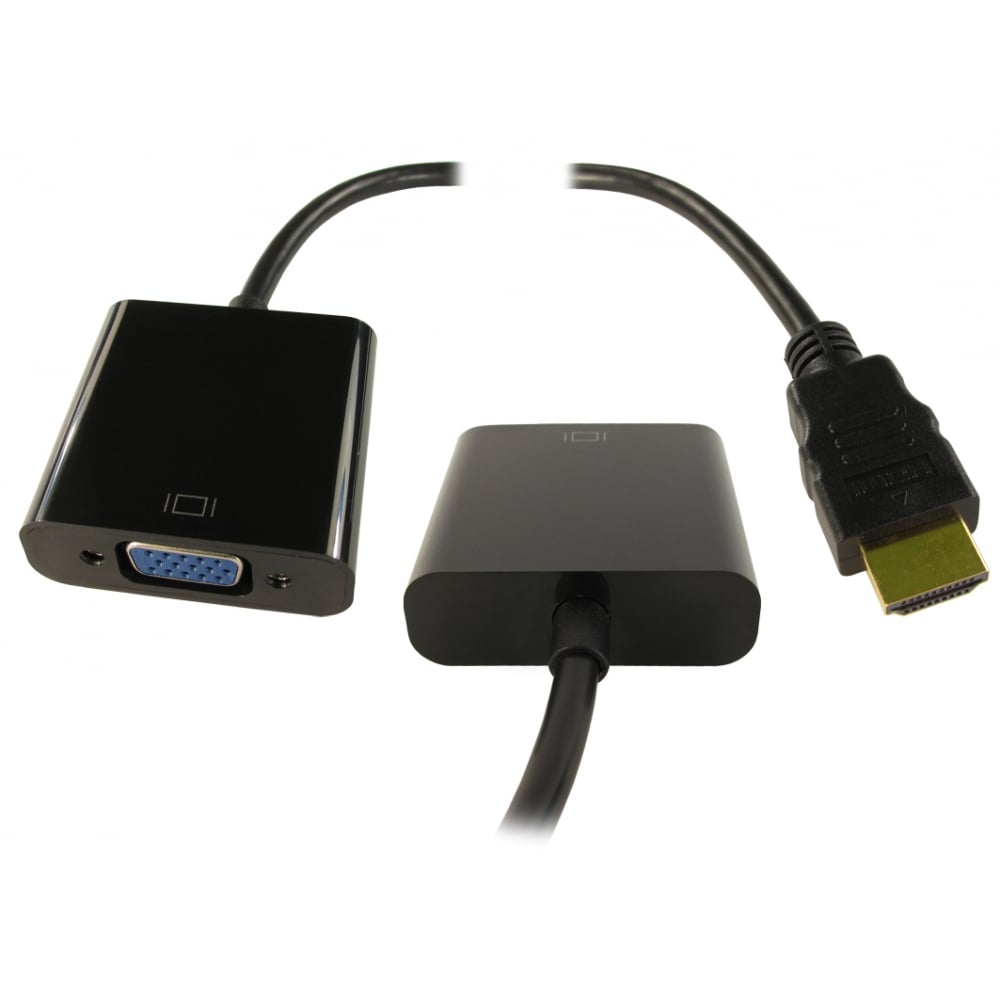

HDMI to VGA Adaptor | VGA-HDMI | • Active |
|

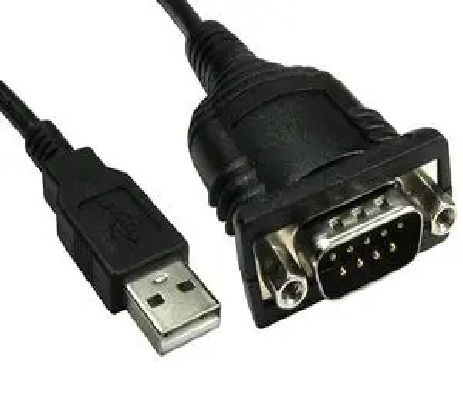

USB to RS232 Adaptor | USB-RS232 | • Active |
