SYMBOL69-BARC-2D-USB

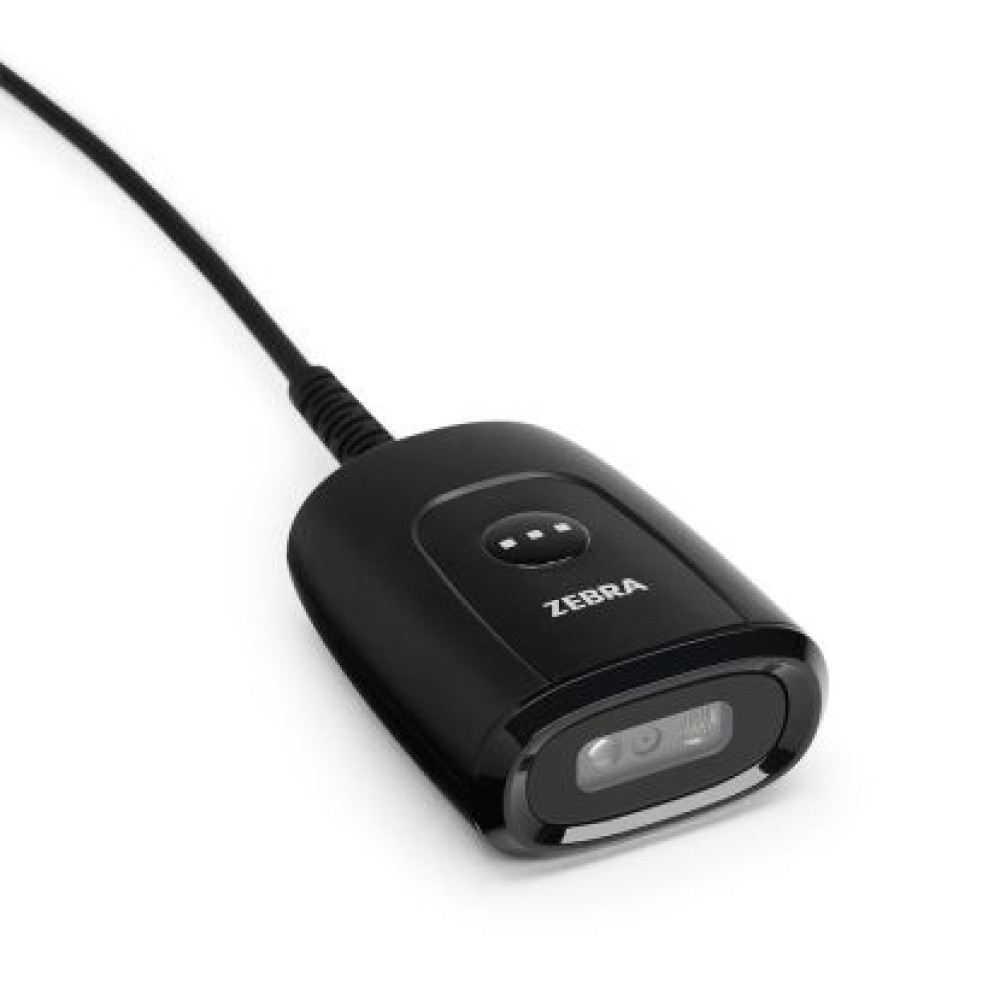

DS5502 2D Fixed Mount Scanner (USB)
Next generation fixed mount imager with USB interface and a direct replacement for the SYMBOL65-BARC-2D-USB.
Delivers fast, high-volume hands-free scanning of virtually any bar code—including 1D, 2D, and direct part marks (DPM).
Product Details
| General |
Symbology Decode Capability |
All major 1-D and 2-D bar codes PDF417, DataMatrix, QR Code, Aztec, Composite Codes and MaxiCode US Postnet, US Planet, UK Postal, Australian Postal, Japan Postal |
| Interface | USB Type-A | |
| Sensor Resolution | 1280 (H) x 800 (V) | |
| Aiming Element | Circular 525 nm True Green LED | |
| Illumination Element |
(1) Warm White LED |
|
| Scan Angle | 48° H x 30° V nominal | |
| Minimum Print Contrast | 15% minimum reflective difference | |
| Physical | Dimensions | 30mm x 56mm x 72mm |
| Weight | 65.2g | |
| Colour | Black | |
| Power | External |
4.75 to 5.25 VDC Host Powered; 4.75 to 5.25 VDC |
| Environmental | Operating |
-4° to 122° F /-20° to 50°C 95% RH, non-condensing at 50°C |
| Storage |
-40° to 158° F /-40° to 70° C 95% RH, non-condensing at 50°C |
|
| Sealing | IP54 | |
| Certifications | Electrical |
EN 62368-1:2014/AC:2015 | EN 62368-1:2014/A11:2017 | IEC 62368-1:2014| EN IEC 62368-1:2020+A11:2020 | IEC 62368-1:2018 | UL 62368-1, third edition | CAN/CSA-C22.2 No. 62368-1-19 |
| EMI/RFI | FCC 47 CFR Part 15B | ICES-003 | EN55032 | EN55035 | EN61000-6-2 | EN60601-1-2 | IEC60601-1-2 | VCCI | SABS | |
| Environmental | RoHS - EN IEC 63000:2018 Amendment 2015/863 | WEEE RECAST 2012/19/EU | China RoHS - SJ/T 11364 | REACH - EC 1907/2006 | |
| Box Contents | Contents |
Scanner USB Cable |
| Weight | 0.3 kg |
Images
Documentation
| Source | Information |
|---|---|
| Manufactures Website |
Manufacturers support page including drivers and developers tools |
Accessories & Spares
| Item | Part Number | Status | |
|---|---|---|---|
|
Space Pole scanner bracket | SCAN-BRKT-01 | • Active |
|
Replacement 5V PSU for the RS232 Cable | SYMBOL-BARC-PSU | • Active |
|
Serial Cable | SYBOL66-CBL | • Active |
|
USB Cable | SYMBOL65-CBL-USB | • Active |
|
|
USB cable 2.9m coiled | SYMBOL68-CBL-USB-2M8 | • Active |
