SYMBOL64-BARC

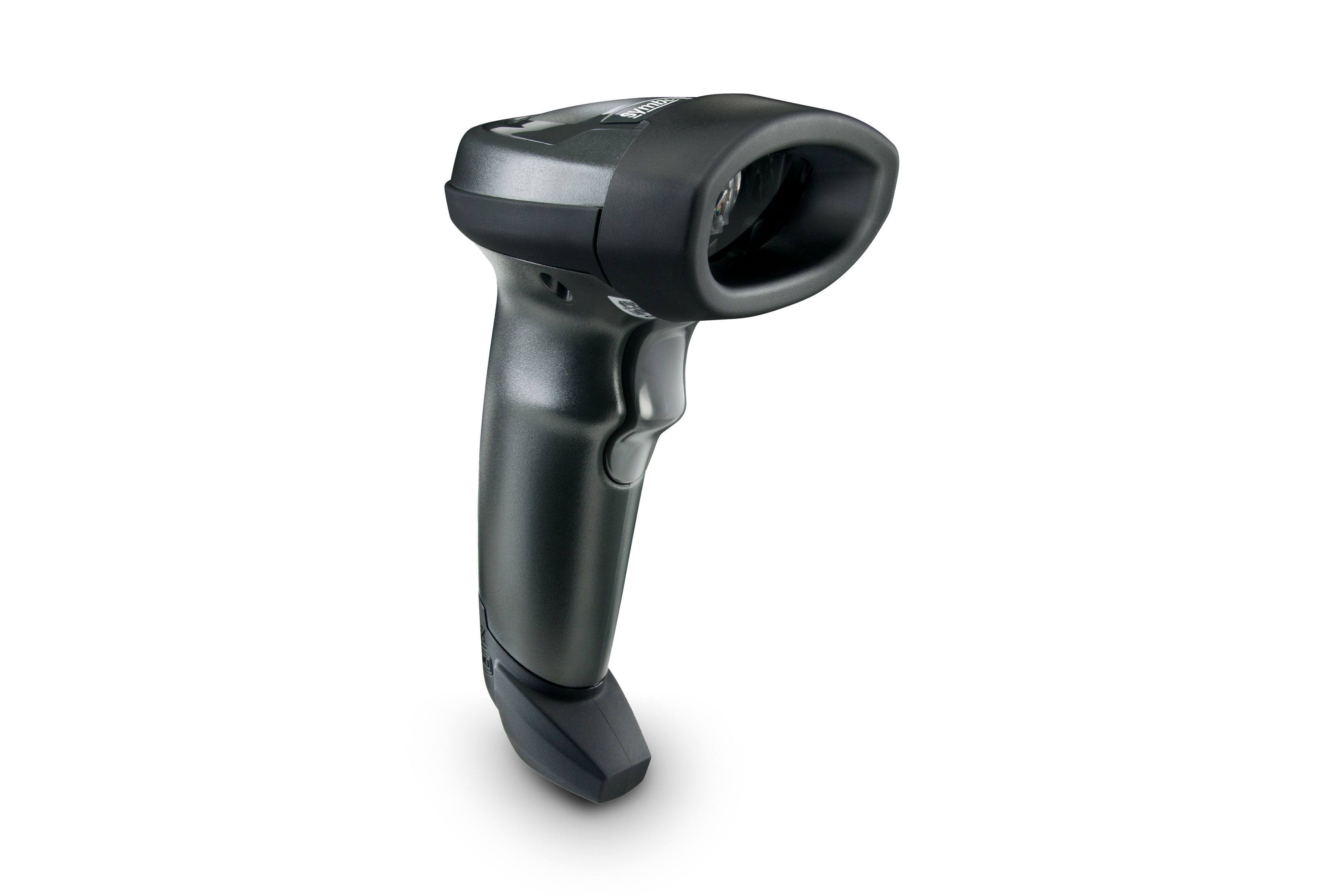

LS2208 1D Hand Held Scanner (Serial)
The LS2208 is a 1D handheld scanner with enhanced features such as extended range and support for mobile bar codes.
Only available as a serial device
Product Details
| General |
Symbology Decode Capability |
UPC/EAN: UPC-A, UPC-E, UPC-E1, EAN-8/JAN 8, EAN-13/JAN 13, Bookland EAN, Bookland ISBN Format, UCC Coupon Extended Code, ISSN EAN Code 128 Including GS1-128, ISBT 128, ISBT Concatenation, Code 39 including Trioptic Code 39, Convert Code 39 to Code 32 (Italian Pharmacy Code), Code 39 Full ASCII Conversion Code 93 Code 11 Matrix 2 of 5 Interleaved 2 of 5 (ITF) Discrete 2 of 5 (DTF) Codabar (NW - 7) MSI Chinese 2 of 5 IATA Inverse 1D (except all GS1 DataBars) GS1 DataBar including GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded |
| Interface | RS232 9-pin male D-sub | |
| Light Source | 650 nm Laser Diode Class 2 | |
| Scan Pattern | Single line | |
| Scan Speed |
100 scans per second |
|
| Scan Angle | 35° | |
| User Indicators | Direct decode indicator, good decode LEDs, beeper (adjustable tone/volume) | |
| Physical | Dimensions | 152mm x 64mm x 85mm (6.0in x 2.5in x 3.3in) |
| Weight | 150.0 g (5.3oz) | |
| Colour | Black | |
| Power | Input |
4.5 to 5.5 VDC host powered 4.5 to 5.5 VDC external power supply Operating Current: 175 mA (typical) Standby Current: 90 mA (typical) |
| Environmental | Operating |
0° to 50° C (32° to 122° F) 5% to 95% RH, non-condensing |
| Storage |
-40° to 70° C (-40° to 158° F ) 85% RH, non-condensing at 70°C |
|
| Sealing | IP30 | |
| Certifications | Electrical |
EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011; IEC 60950-1: 2005 + A1: 2009; UL 60950-1, second edition; CAN/CSA-C22.2 No. 60950-1-07 |
| Laser Classification | CDRH Class II; IEC Class 2 | |
| EMI/RFI | FCC 47 CFR Part 15, Subpart B, Class B; ICES-003 Issue 4, Class B; Compliant with EMC Directive 2004/108/EC | |
| Environmental | Compliant with RoHS Directive 2011/65/EU; EN 50581: 2012 | |
| Box Contents | Contents |
Scanner PSU Cable Stand |
| Weight | 0.5 kg |
Images
Documentation
| Source | Information |
|---|---|
| Manufacturers Website |
Accessories & Spares
| Item | Part Number | Status | |
|---|---|---|---|
|
Replacement 5V PSU for the RS232 Cable | SYMBOL-BARC-PSU | • Active |
|
Serial Cable | SYBOL66-CBL | • Active |
|
USB Cable | SYMBOL65-CBL-USB | • Active |
|
|
USB cable 2.9m coiled | SYMBOL68-CBL-USB-2M8 | • Active |
|
CAT 5 STP CBL 1M Grey | LDC505 | • Active |
|
RJ45 to 9 Pin D-Type serial adapter | LDAD07 | • Active |
