PC390P

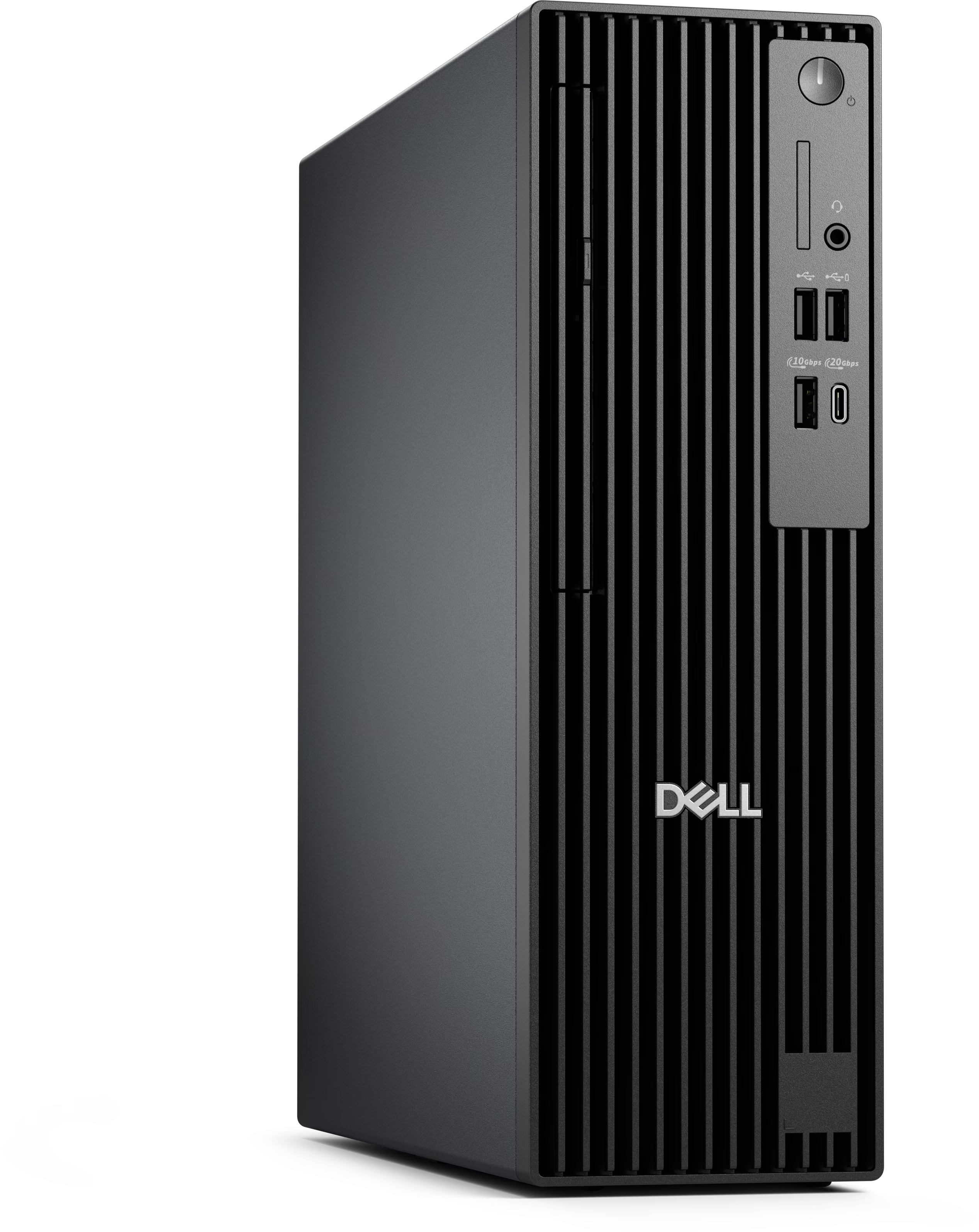

Dell Pro Slim Plus XE5 Desktop
Compact high performance desktop with extended hardware transitions and stability.
Product Details
| General |
CPU |
Intel(R) Core(TM) Ultra 7 265 vPro(R) (13 TOPS NPU, 20 cores, up to 5.3GHz) |
| RAM | 1 x 16GB, DDR5, up to 5600 MT/s, non-ECC | |
| Storage | 512GB SSD TLC M.2 | |
| Operating System |
WIndows 11 Pro (Contact Zonal for alternatives, not compatible with WIN 10 IOT LTSC ) |
|
| Connectivity |

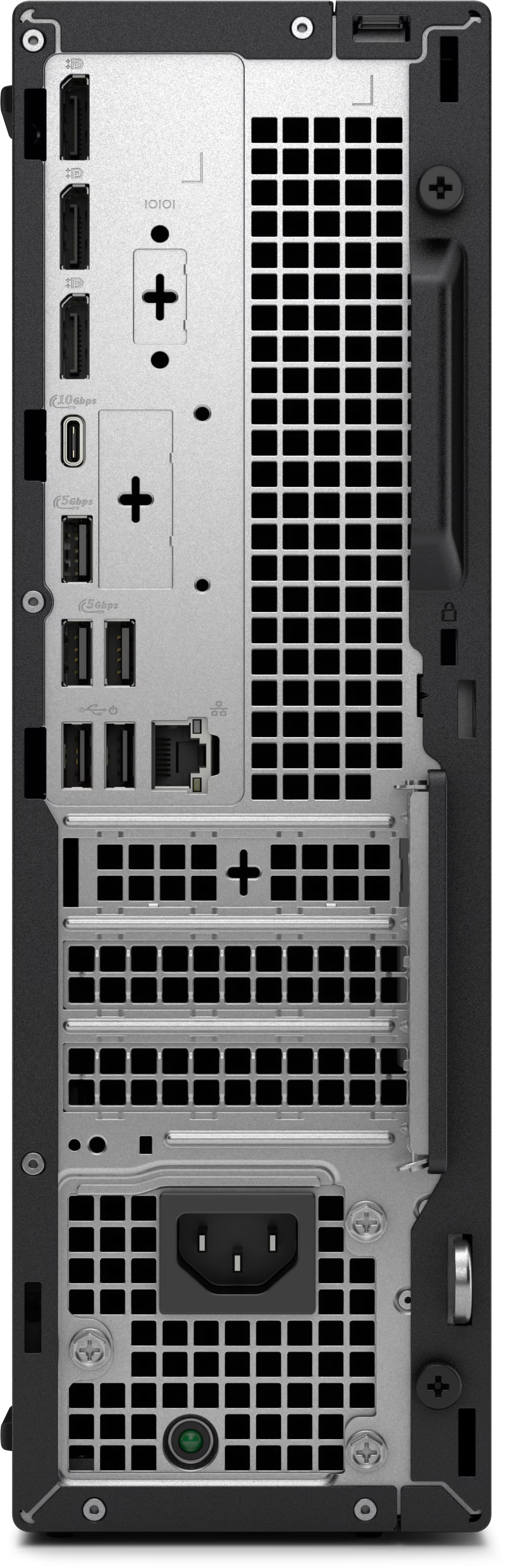

Front 1 x USB 2.0 (480 Mbps) with PowerShare 1 x USB 2.0 (480 Mbps) 1 x USB 3.2 Gen 2 (10 Gbps) 1 x USB 3.2 Gen 2x2 (20 Gbps) Type-C 1 x global headset jack Rear 3 x DisplayPort™ 1.4a (HBR3) 1 x USB 3.2 Gen 2 (10 Gbps) Type-C 3 x USB 3.2 Gen 1 (5 Gbps) 2 x USB 2.0 (480 Mbps) ports with SmartPower On 1 x VGA Port 2 x RJ45 (1GbE) Ethernet port 1 x Legacy RS232 serial port 3 x Half-height PCIe Slots |
|
| Display Interface | Intel Graphics shared system memory | |
| Systems Management | Intel vPro(R) Enterprise | |
| Security | Trusted Platform Module TPM 2.0 | Security-cable slot (Kensington lock) | Padlock ring | |
| Physical | Dimensions | 303.50 mm x 95.00 mm x 293.00 mm |
| Weight | 6.58 kg (14.51 lb) maximum | |
| Power | Internal |
360W PSU | Input: 90 VAC - 264VAC, 47Hz - 63Hz, 5A |
| Environmental | Operating |
5°C to 45°C (41°F to 113°F) | 10% to 90% (non-condensing) |
| Storage |
-40°C to 65°C (-40°F to 149°F) | 0% to 95% (non-condensing) |
|
| Certifications | - |
FCC Suppliers Declaration of Conformity ENERGY STAR ENERGY STAR Qualified | EPEAT 2018 Registered (Silver) |
| Box Contents | Contents |
Dell Pro Slim Plus XE5 Desktop Qwerty Keyboard Optical Mouse Power Lead |
| Weight | 7.5KG |
Images
Documentation
| Source | Information |
|---|---|
| Dell inc |
Accessories & Spares
| Item | Part Number | Status | |
|---|---|---|---|
|
|
16GB DDR5 SODIMM 5600 MT/s | PCDIMM16GB-PC5AA | • Active |
|
32GB DDR5 SODIMM 5600 MT/s | PCDIMM32GB-PC5A | • Active |
|
512GB M.2 PCIe NVME SSD | NVME-SSD512-R | • Active |
|
Main Cable UK, Plug to IEC C13, (Kettle Plug), 5A, 2m | LD4010 | • Active |
