PC380S
Dell Pro Micro Dektop QCM1250
Zonal standard BOH Micro Form Factor desktop PC.
Product Details
| General |
CPU |
Intel(R) Core(TM) i5 14500T vPro(R) (14 cores, up to 4.8GHz) |
| RAM | 1 x 16GB DDR5 SODIMM up to 4800 MT/s, non-ECC | |
| Storage | 256GB SSD M.2 | |
| Operating System | Windows 11 Pro | |
| Connectivity |
Front 1 x USB 3.2 Gen 2 (10 Gbps) Type-C® port 1 x USB 3.2 Gen 1 (5 Gbps) port 1 x headset (headphone and microphone combo) port Rear 1 USB 3.2 Gen 1 (5 Gbps) port with SmartPower On 1 x USB 3.2 Gen 1 (5 Gbps) port 2 x USB 2.0 (480 Mbps) ports 1 x RJ45 (10/100/1000 Mbps) Ethernet port 1 x power-adapter port 2 x M.2 2230/2280 slots for solid-state drive |
|
| Display Interface |
1 x DisplayPort™ 1.4a 1 x 1 HDMI 2.1 port |
|
| Security | Kensington security-cable slot and padlock ring | SafeID including Trusted Platform Module (TPM) 2.0 | |
| Physical | Dimensions |
182.00 mmx 36.00 mm x 178.00 mm |
| Weight | 1.40 Kg (max) | |
| Power | External Power Adaptor |
Input: 100 VAC–240VAC, 1.5A, 50Hz - 60Hz Output: 19.5Vdc, 4.62A, |
| Environmental | Operating |
Temperature: 10°C to 35°C (50°F to 95°F) | Relative Humidity20% to 80% (non-condensing) |
| Storage |
Temperature: -40°C to 65°C (-40°F to 149°F) | 5% to 95% (non-condensing) |
|
| Certifications | - | |
| Box Contents | Contents |
MFF PC | Power Supply | Mains Cable | Keyboard | Mouse |
| Weight | 2.5Kg |
Images
Documentation
| Source | Information |
|---|---|
| Dell Inc |
Accessories & Spares
| Item | Part Number | Status | |
|---|---|---|---|
|
|

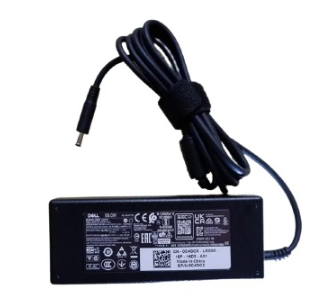

Dell 90W AC Adapter | PC-90W-PSU | • Active |
|
IEC C5 (Clover Leaf) to 3 Pin UK 1.8m Black | LD4020 | • Active |
|
32GB DDR5 SODIMM 5600 MT/s | PCDIMM32GB-PC5A | • Active |
|

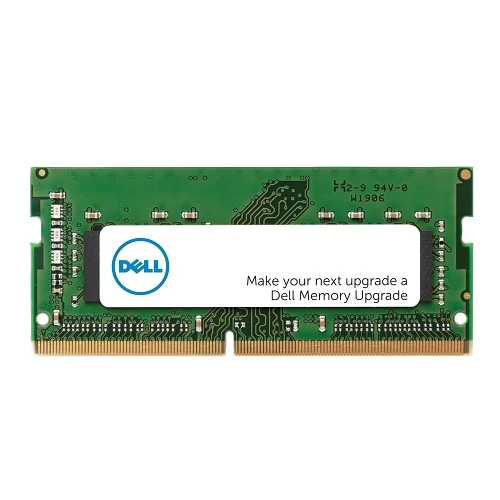

16GB DDR5 SODIMM 5600 MT/s | PCDIMM16GB-PC5A | • Active |
|

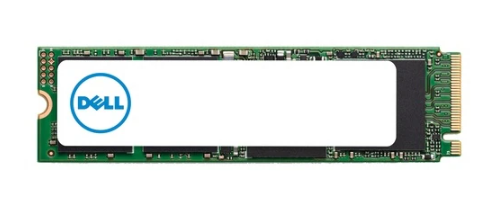

512GB M.2 PCIe NVME SSD | NVME-SSD512-R | • Active |
|
Dell Dual VESA Mount with Adapter Bracket for Micro Form Factor PC's | PCBRKT-DEL-MFF | • Active |
