Z9-POLE-2LINE

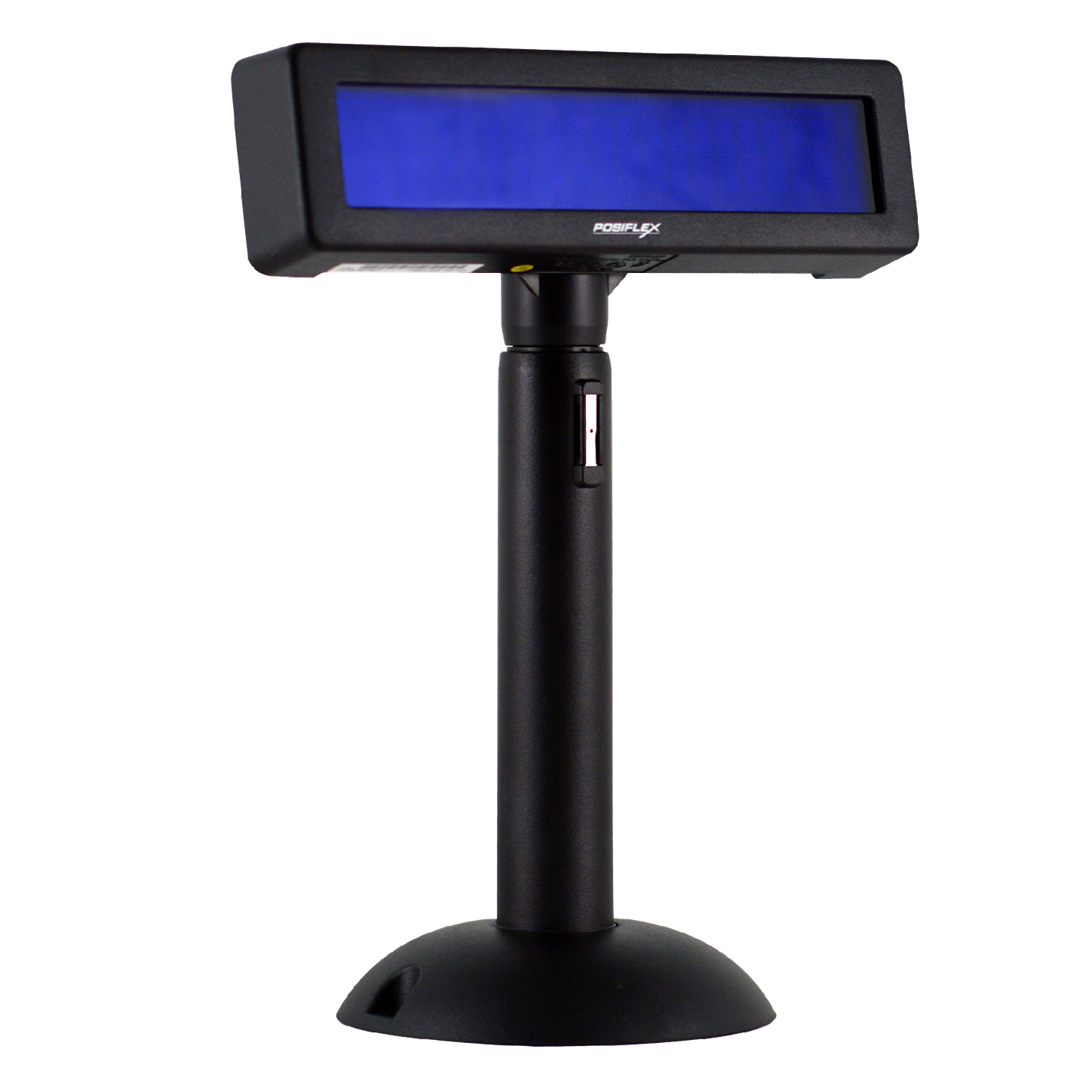

Pole Mount 2 Line Display
Z9 specific 2 Line VFD display mounted on an height adjustable pole and with USB interface.
Product Details
| General |
Display Type |
VFD (Blue/Green) |
| Characters | 20 Characters per line | |
| Resolution | 5 x 7 Dots | |
| Character Size | 9.03mm x 5.25mm | |
| Connectivity |
USB |
|
| Tilt Adjustment | 15° to 23° | |
| Swivel Adjustment | 355° | |
| Colour | Black | |
| Physical | Dimensions | 200mm x 116mm x 265mm ~ 395mm |
| Weight | 840g | |
| Power | USB |
5V, 500mA |
| Environmental | Operating |
Temperature: 0°C to 40°C | Humidity: 20% to 85% (Non Condensing) |
| Storage |
Temperature: -10°C to 60°C | Humidity: 5% to 90% (Non Condensing) |
|
| Certifications | - |
UKCA |
| Box Contents | Contents |
PD-2800UE Mounting Kit Manual |
| Weight | 1 kg |
Images
Documentation
| Source | Information |
|---|---|
| Posiflex Inc | Instruction Manual |
Accessories & Spares
| Item | Part Number | Status | |
|---|---|---|---|
|
|
NA |
