MPOS-S1F4-FP

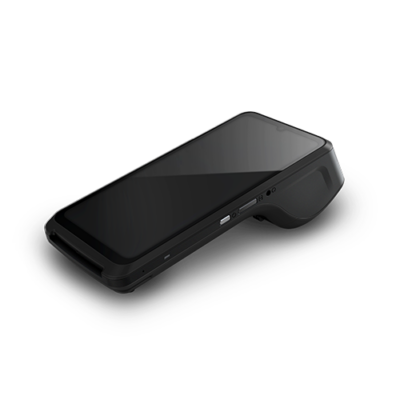

Castles S1F4 Pro Mobile Payment Terminal
All In One order and pay at table device with printer and the power of Aztec+
Product Details
| General |
Processor |
ARM A57 Octa-Core 2.4GHz + Secure Processor |
|
Memory |
32GB | RAM: 4GB/8GB(option) | Micro-SD Socket | |
|
OS |
Android 13 | |
| Display | 6.7” Color HD+ Display with Capacitive Touch Screen | |
| Card Reader |
Magnetic Stripe | Smart Card | Contactless |
|
|
Connectivity |
Wireless: 4G LTE | 3G | 2G | Wi-Fi | Bluetooth SIM & SAM: 2 SIM | 1 SIM + eSIM (option) | 2 SAM Ethernet: Via Communication Cradle (Optional) USB-C |
|
| Printer | Paper Roll Size: 58mm (W) x Ø40mm | Print Speed: 100mm/sec | |
| Physical | Dimensions | 192 x 81 x 54 mm |
| Weight | 436g | |
| Power | Battery |
Battery 3350mAh 7.4V Li-ion, 24.12Wh 5V/2A or (9V/2A option) | Battery 3350mAh 7.4V Li-ion, 24.12Wh |
| External | 5V/3A via USB-C ( or 9V/2A option) | |
| Environmental | Operating |
Temperature: -10°C to 55° | Humidity: 5% to 90% Non-condensing |
| Storage |
Temperament: -20°C to 70°C | Humidity: 5% to 90% Non-condensing |
|
| Certifications |
PCI PTS 6.x | EMV L1/L2 | payWave | PayPass | ExpressPay | D-PAS | Interac Flash | J/Speedy | FeliCa | QuickPass | TQM |
|
| Box Contents | Contents |
S1F4 Pro | USB-C to USB-C Cable |20W USB-C Charging Adaptor |
| Weight | 0.750g |
Images
Documentation
| Source | Information |
|---|---|
|
Castles Technology |
Accessories & Spares
| Item | Part Number | Status | |
|---|---|---|---|
|
|

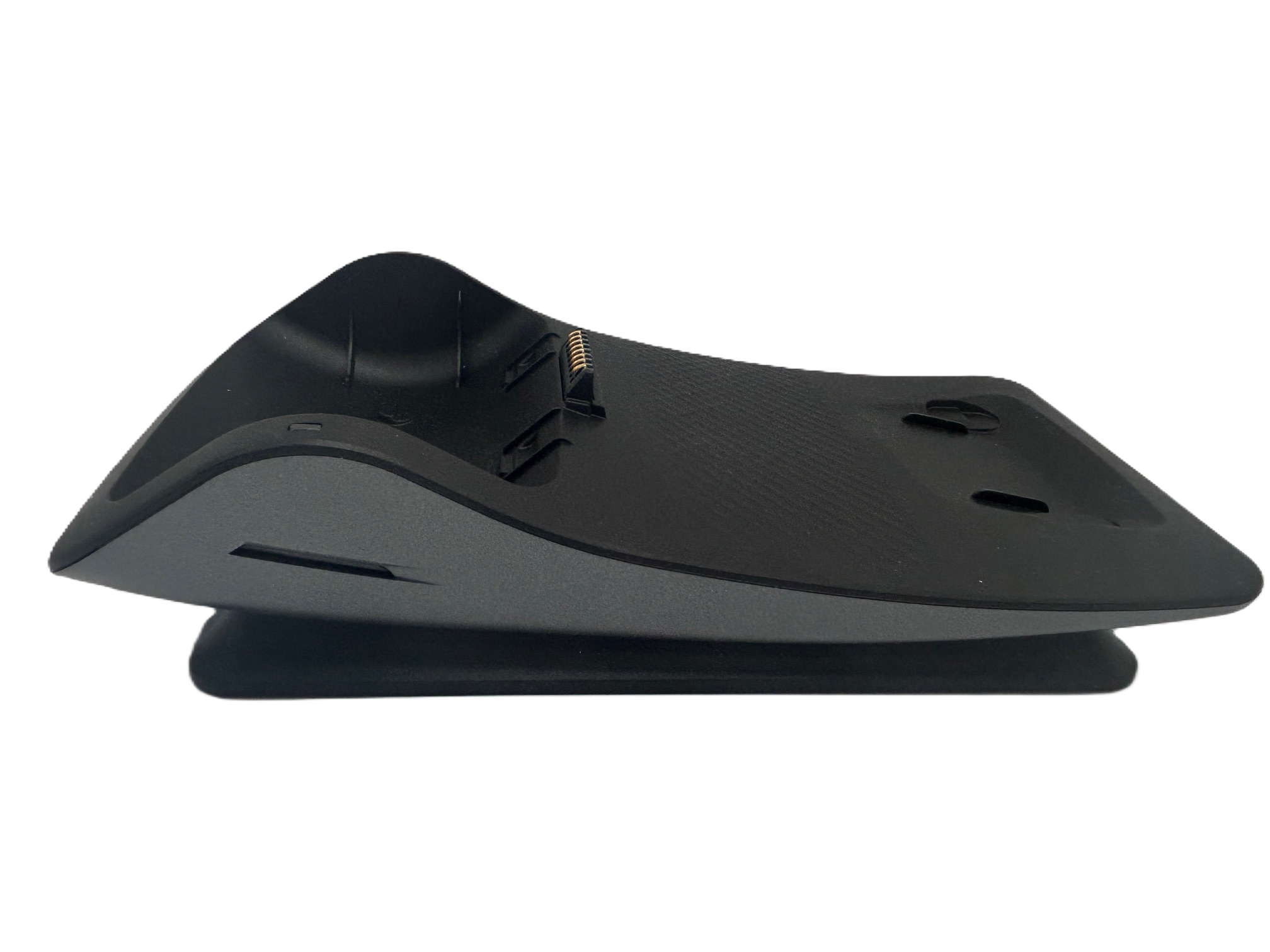

Communication Cradle | MPOS-S1F4-COMCRDL | • Active |
|
Charging Cradle | MPOS-S1F4-CHCRDL | • Active |
|

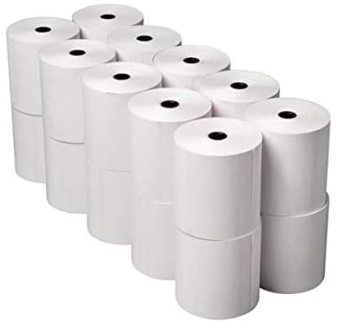

Thermal Paper, 57mm wide x Ø40mm | PINPAD8-PAP | • Active |
|

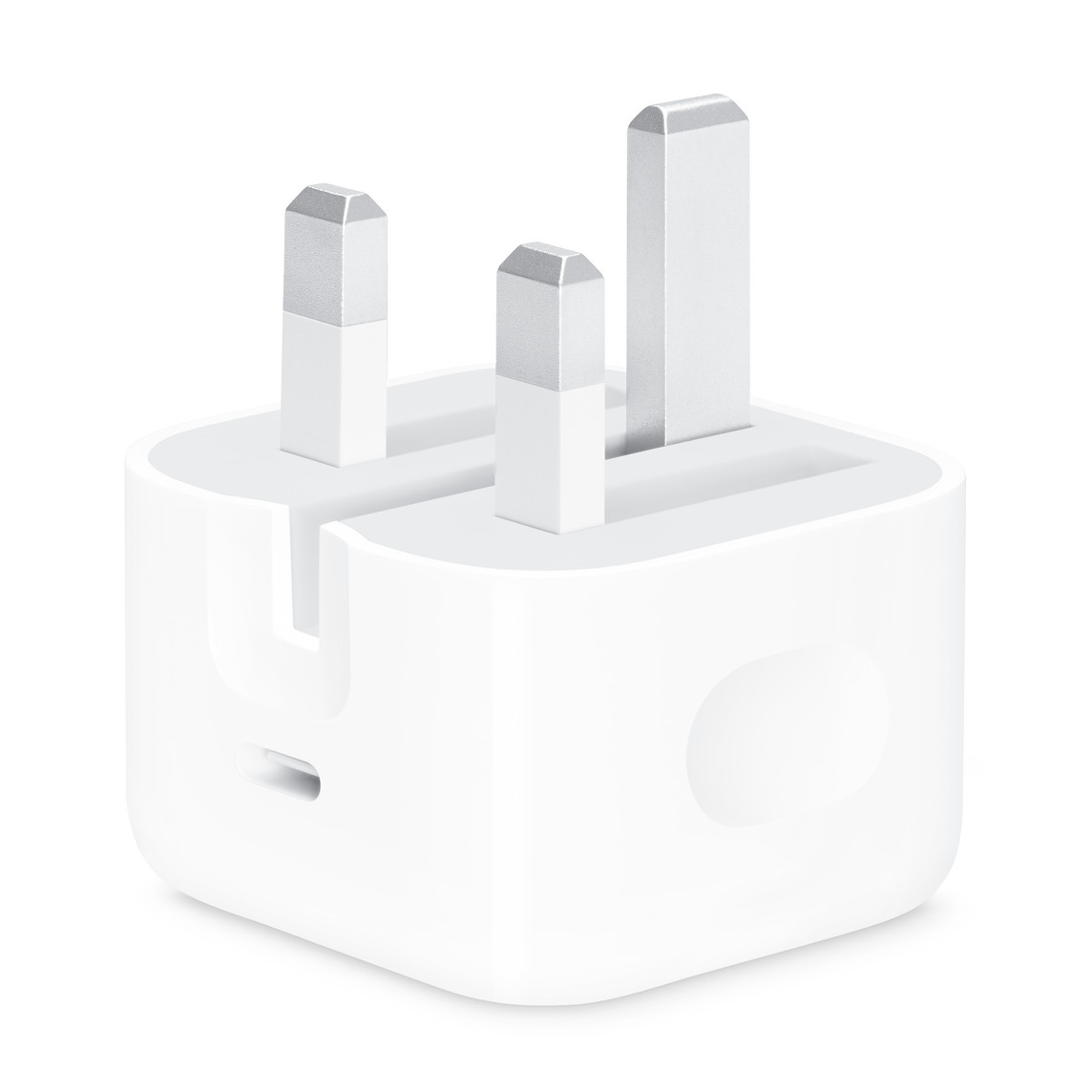

USB-C Power Adaptor | LDAD-APPLE-USBC | • Active |
|

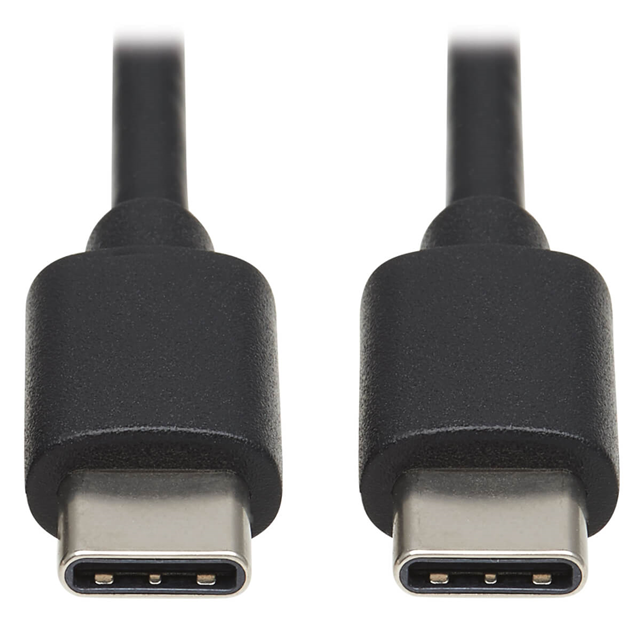

USB-C to USB-C lead, 1m | LDUSB-APPLE-USBC | • Active |
|

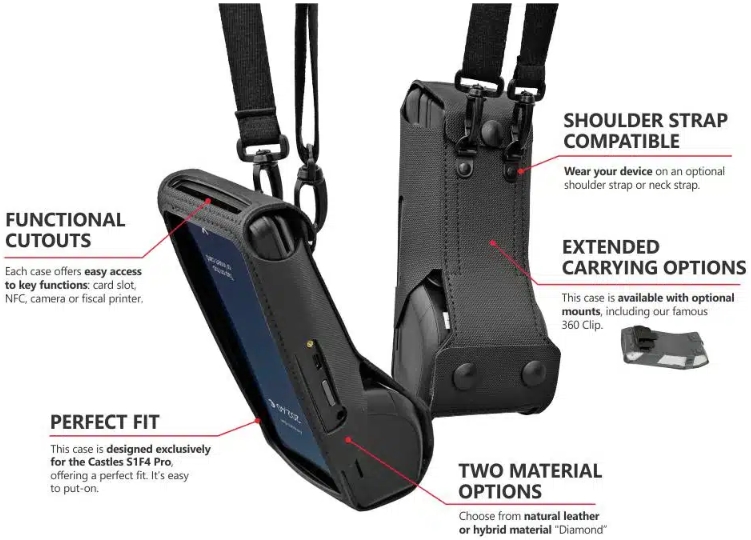

Holster with belt clip | MPOS-S1F4-DCASE | • Active |
|

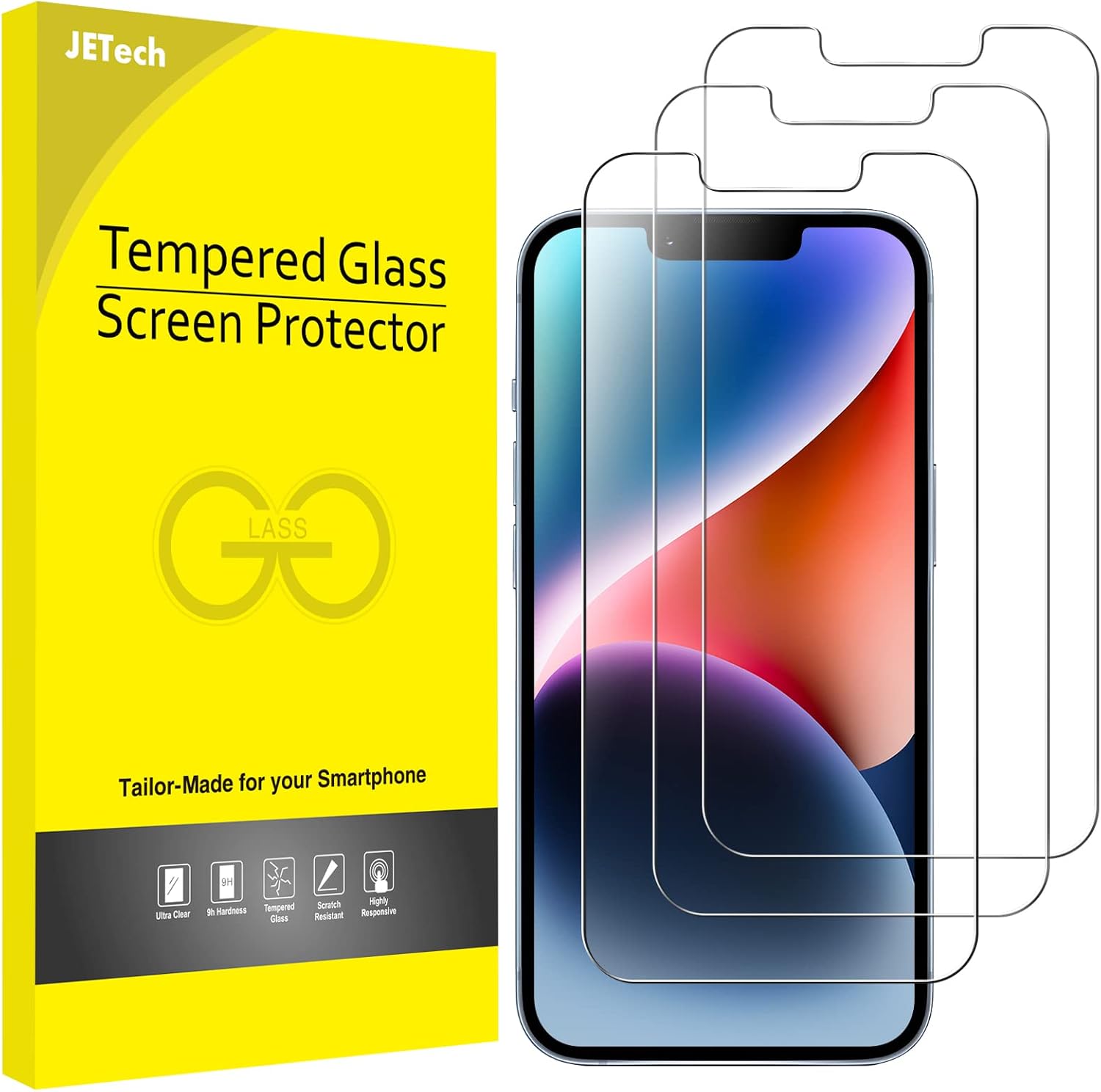

Screen Protector | MPOS-S1F4-SCRNP | • Active |
|

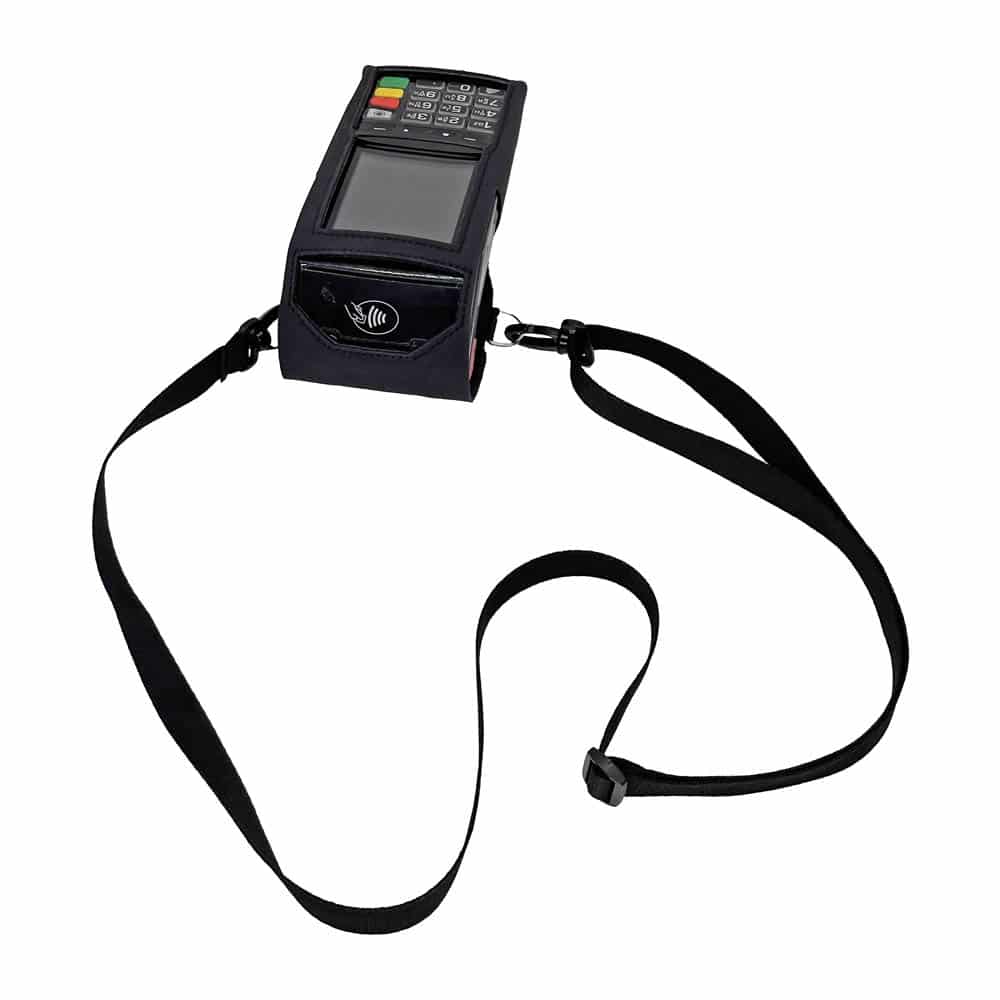

Shoulder Strap | IPADMINI-CHGR10-STRP | • Active |
