PINPAD16-FP

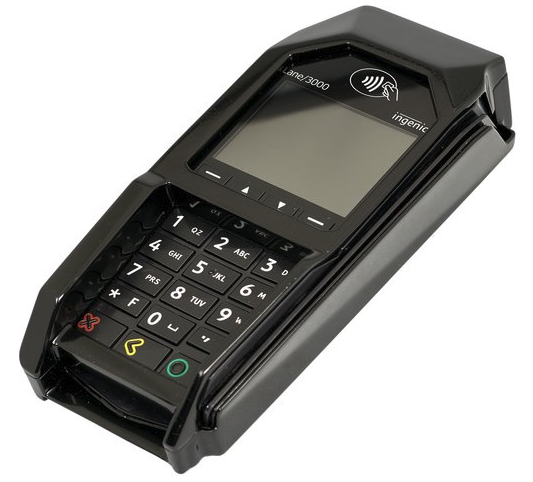

Ingenico Lane/3000
Fixed, wired pin entry device with chip and pin, contactless and card swipe functionality
Product Details
| General |
Processor |
Cortex M5 |
|
Memory |
256MB Flash | 128MB Ram |
|
|
OS |
Telium TETRA HTML5 | |
| Display | 2.8’’ backlight, QVGA (320x240 pixels) | |
| Card Reader |
Magstripe : ISO1/2/3,500K reads lifespan | Smart Card: EMV Level 1,500K reads lifespan | Contactless: EMV Level 1 3.0 spec compliant |
|
|
Connectivity |
RS232 | Ethernet 10/100 base T |
|
| Printer | N/A | |
| Physical | Dimensions | 83 x 180 x 43 mm (3.26’’ x 7.08’’ x 1.69’’) |
| Weight | 254g | |
| Power | Battery | N/A |
| External |
Input: 100 - 240Vac, 50/60Hz, 0.5Amax | Output: 8Vdc, 2A | Integrated UK 3-Pin Plug |
|
| Environmental | Operating |
Temperature: 32°F to 122°F (0 to +50°C) | Relative Humidity: 104°F (85% HR at +40°C) |
| Storage |
-4°F to 131°F (-20 to +70°C) | Relative Humidity: 104°F (85% HR at +40°C) |
|
| Certifications | - |
PCI PTS 5.x & 6.x certified, rated for attended and self-service semi-attended use cases |
| Box Contents | Contents |
Lane/3000 RS232 Serial Cable UK Mains Power Supply |
| Weight | 380g |
Images
Documentation
| Source | Information |
|---|---|
| Ingenico |
Accessories & Spares
| Item | Part Number | Status | |
|---|---|---|---|
|
|
Ingenico 8Vdc PSU | PINPAD16-PSU-UK | • Active |
| Ingenico RS232 Serial Cable, 2m | PINPAD16-SCBL-2M | • Active | |
| genico RS232 Serial Cable, 5m | PINPAD16-SCBL-5M | • Active | |
| Ingenico PED to LAN cable, 2m | PINPAD16-LCBL-2M | • Active | |
| Ingenico PED to LAN cable, 4m | PINPAD16-LCBL-4M | • Active | |
| Ingenico Lane 3000 Back Plate for PED Counter Top Stand | PINPAD10-PEDPACK-02 | • Active | |
| PED Counter Top Stand With Lock | PINPAD-STAND | • Active | |
| 9 Pin D-Type to 8 Pin RJ45 Serial Adapter | LDAD07 | • Active |
