PINPAD17-FP

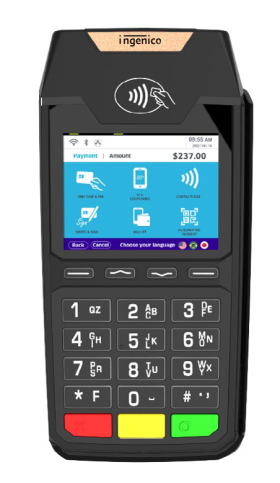

Ingenico Lane/3600
Fixed, wired pay at counter Pin Entry Device with contactless, chip and pin and swipe functionality.
Product Details
| General |
Processor |
Cortex A7 |
|
Memory |
256MB Flash | 256MB Ram |
|
|
OS |
Telium TETRA | |
| Display | 2.8’’backlight, glass lens, QVGA (320x240 pixels) | |
| Card Reader |
Magstripe : ISO1/2/3,500K reads lifespan | Smart Card: EMV Level 1,500K reads lifespan | Contactless: EMV Level 1 3.0 spec compliant |
|
|
Connectivity |
RS232 | Ethernet 10/100 base T |
|
| Printer | N/A | |
| Physical | Dimensions | 82 x 167 x 42 mm (3.26’’ x 7.08’’ x 1.69’’) |
| Weight | 221g | |
| Power | Battery |
N/A |
| External |
Input: 100 - 240Vac, 50/60Hz, 0.5Amax | Output: 8Vdc, 2A | Integrated UK 3-Pin Plug |
|
| Environmental | Operating |
Temperature: 32°F to 113°F (0 to +45°C) | Relative Humidity: 104°F (85% HR at +40°C) |
| Storage |
Temperature: -4°F to 131°F (-20 to +55°C) | 104°F (85% HR at +40°C) |
|
| Certifications | - |
PCI PTS 6 certified, rated for attended and self-service semi-attended use cases |
| Box Contents | Contents |
Lane/3600 | RS232 Serial Cable | UK Mains Power Supply |
| Weight | 410g |
Images
Documentation
| Source | Information |
|---|---|
| Ingenico |
Accessories & Spares
| Item | Part Number | Status | |
|---|---|---|---|
|
|

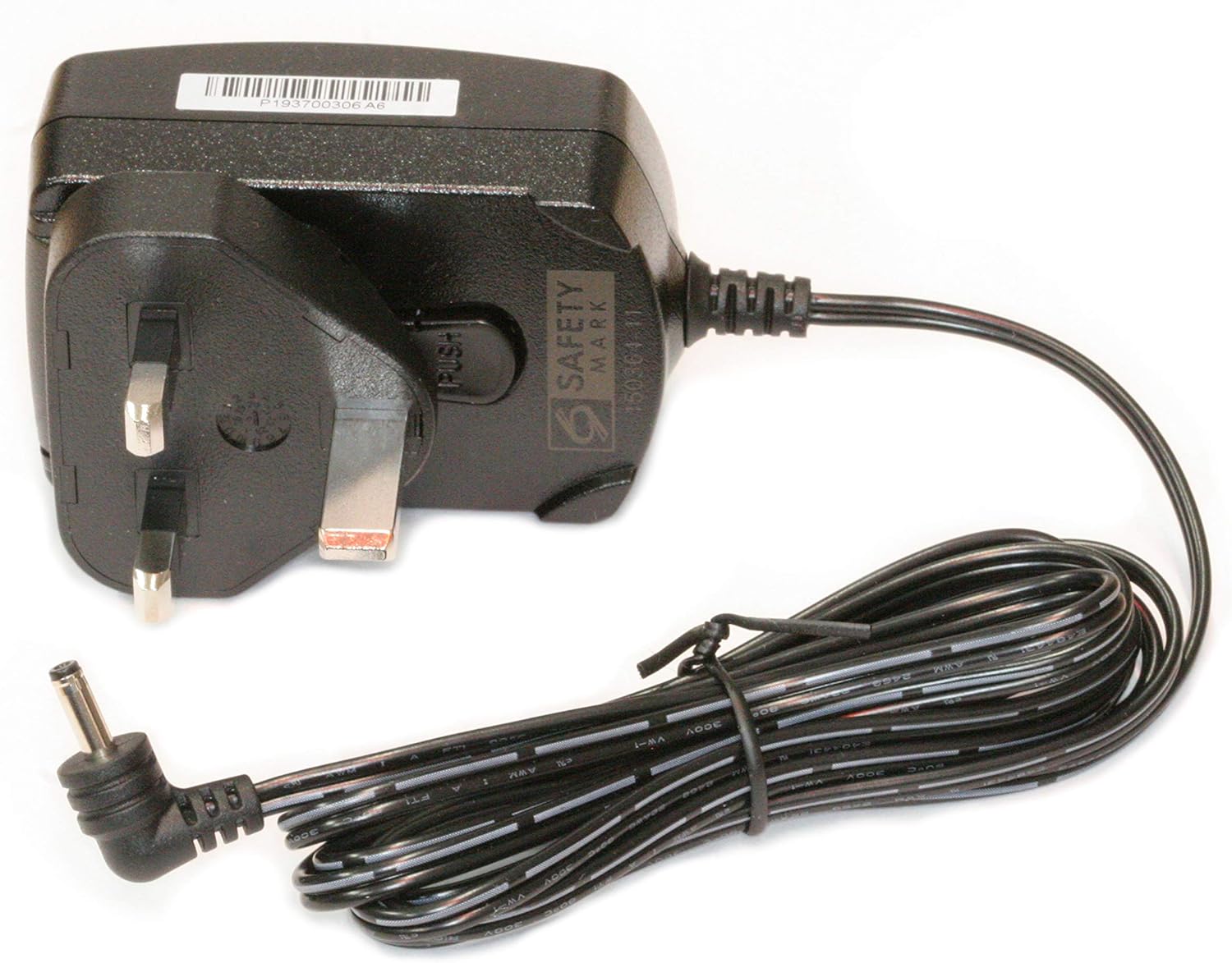

Ingenico 8Vdc PSU | PINPAD16-PSU-UK | • Active |
|

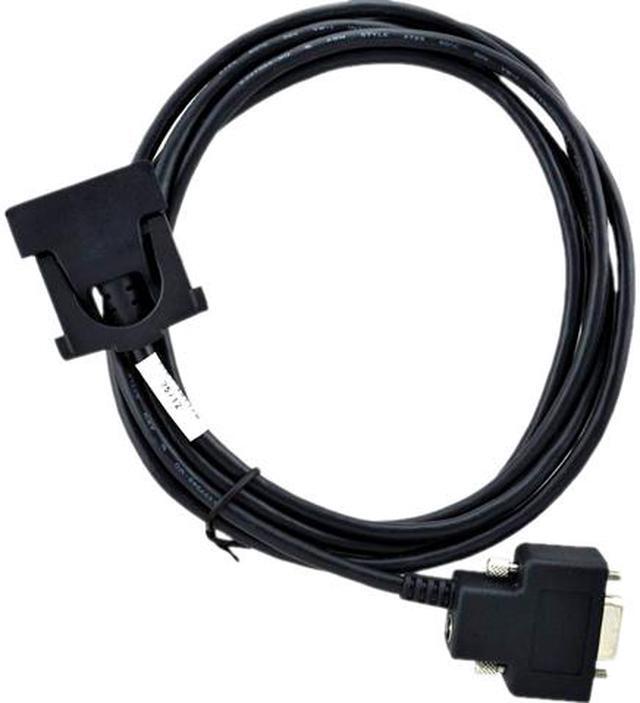

Ingenico RS232 serial cable, 2m | PINPAD16-SCBL-2M | • Active |
|
|
Ingenico RS232 serial cable, 5m | PINPAD16-SCBL-5M | • Active |
|

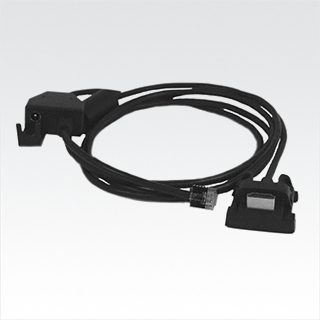

Ingenico PED to LAN cable, 2m | PINPAD16-LCBL-2M | • Active |
|
|
Ingenico PED to LAN cable, 4m | PINPAD16-LCBL-4 | • Active |
|

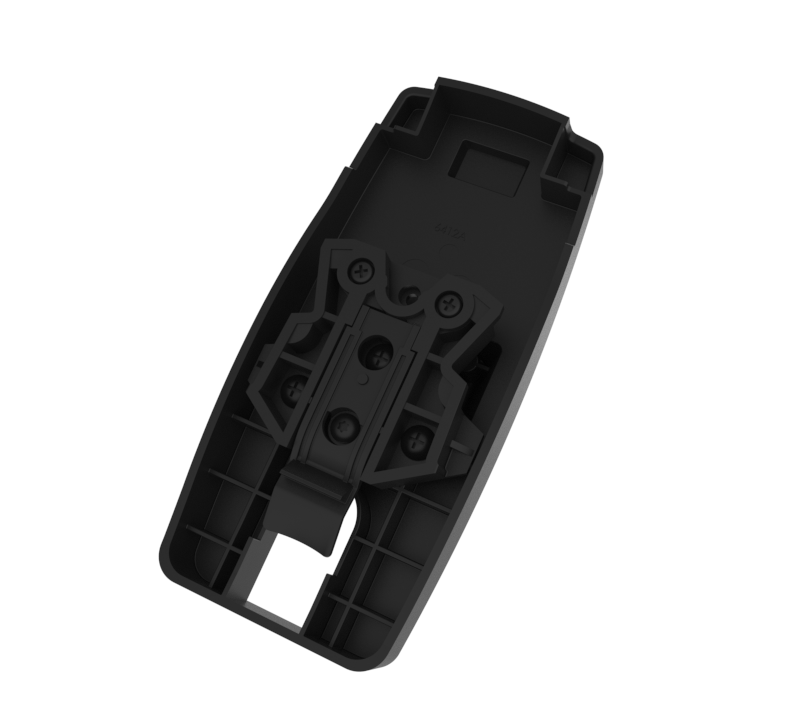

Lane/3600 adapter plate for PINPAD-STAND | PINPAD-PEDPACK-03 | • Active |
|

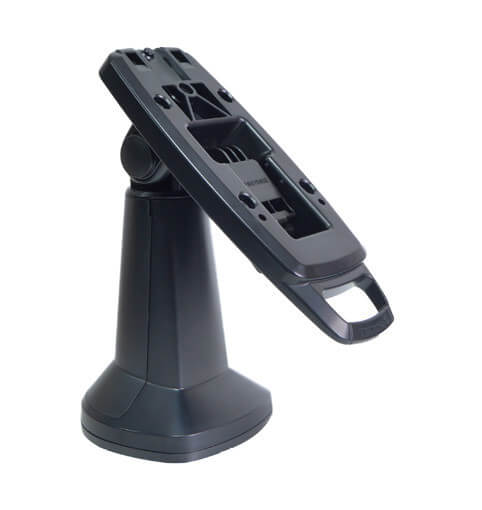

PED counter top stand with Lock | PINPAD-STAND | • Active |
|

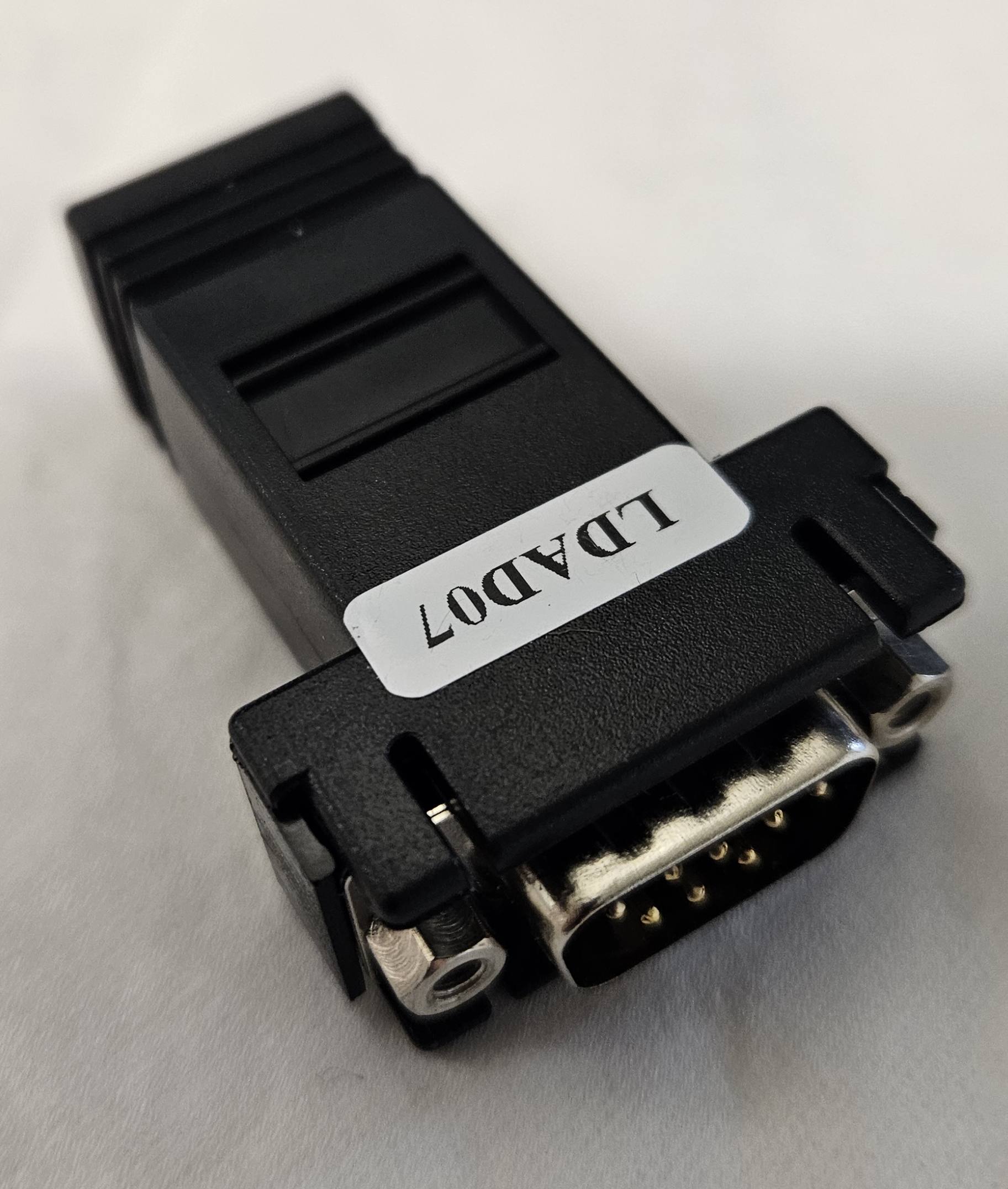

9 Pin D-Type to 8 Pin RJ45 serial adapter | LDAD07 | • Active |
