• Active

Release Date: 10 June 2025

PINPAD-INGEN-SPLIT

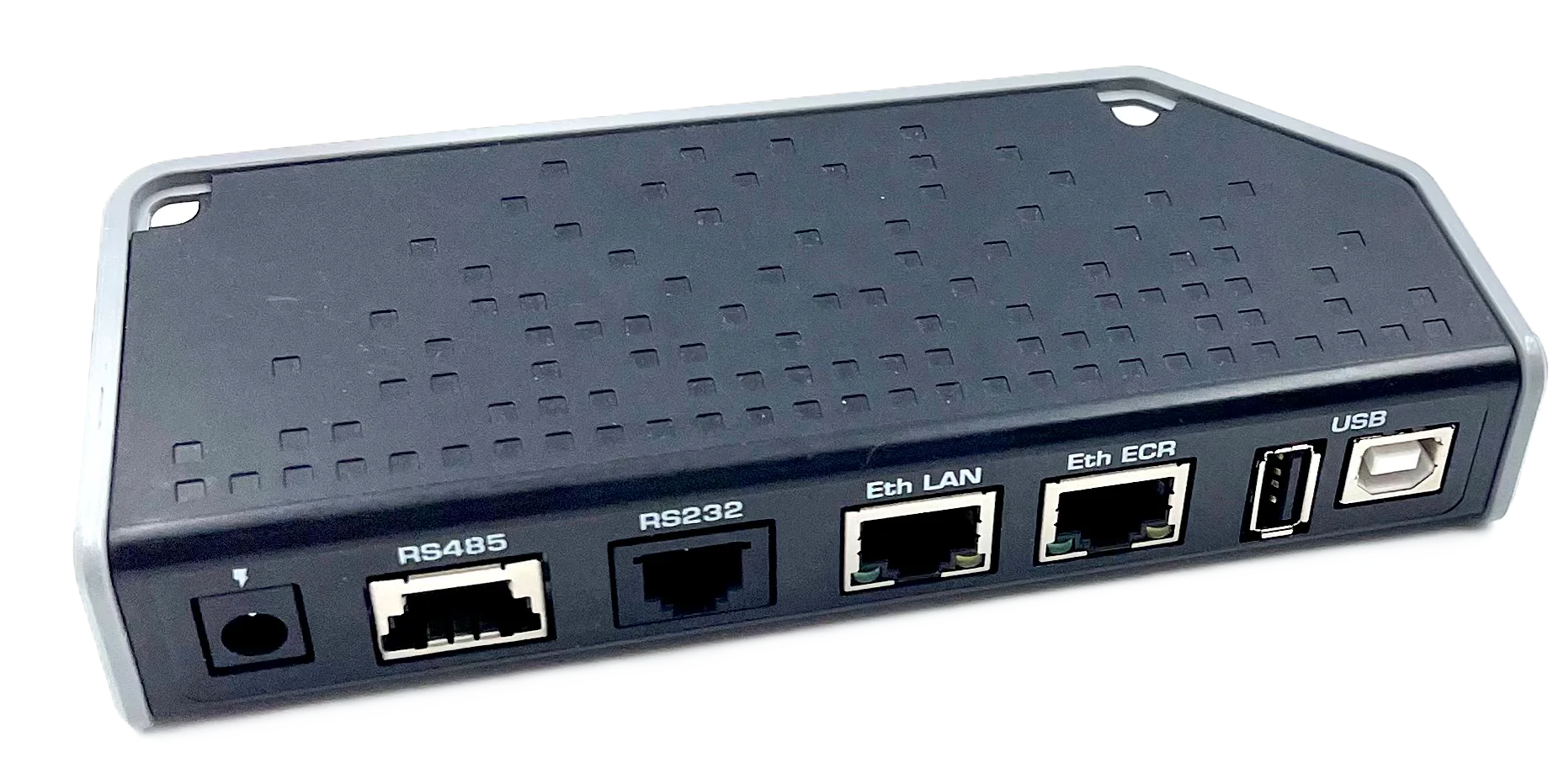

Ingenico Com Box

Allows you to connect your POS Terminal and pin pad to a single wired LAN port. Comes with pin pad IP cable and mounting kit. Uses the PSU supplied with the pin pad.

Sections

Product Details

General

Ports

 2 x Ethernet | RS485 | RS232 | USB Type-B | USB Type-A | Ingenico Pin Pad
Physical Dimensions 150mm x 80mm x 40mm
Weight 250g
Power External Power Brick

Input: 110 - 240Vac, 1A | Output: 8Vdc, 2A (Not Included: Uses PSU supplied with the PinPad)
Environmental Operating

Operating: 0 to +45°C (32°F to 113°F) | Relative Humidity: 85% HR at +40°C (104°F)
Storage

Storage: -20 to +55°C (-4°F to 131°F) | Relative Humidity: 85% HR at +40°C (104°F)
Certifications -

UKCA, CE, FCC

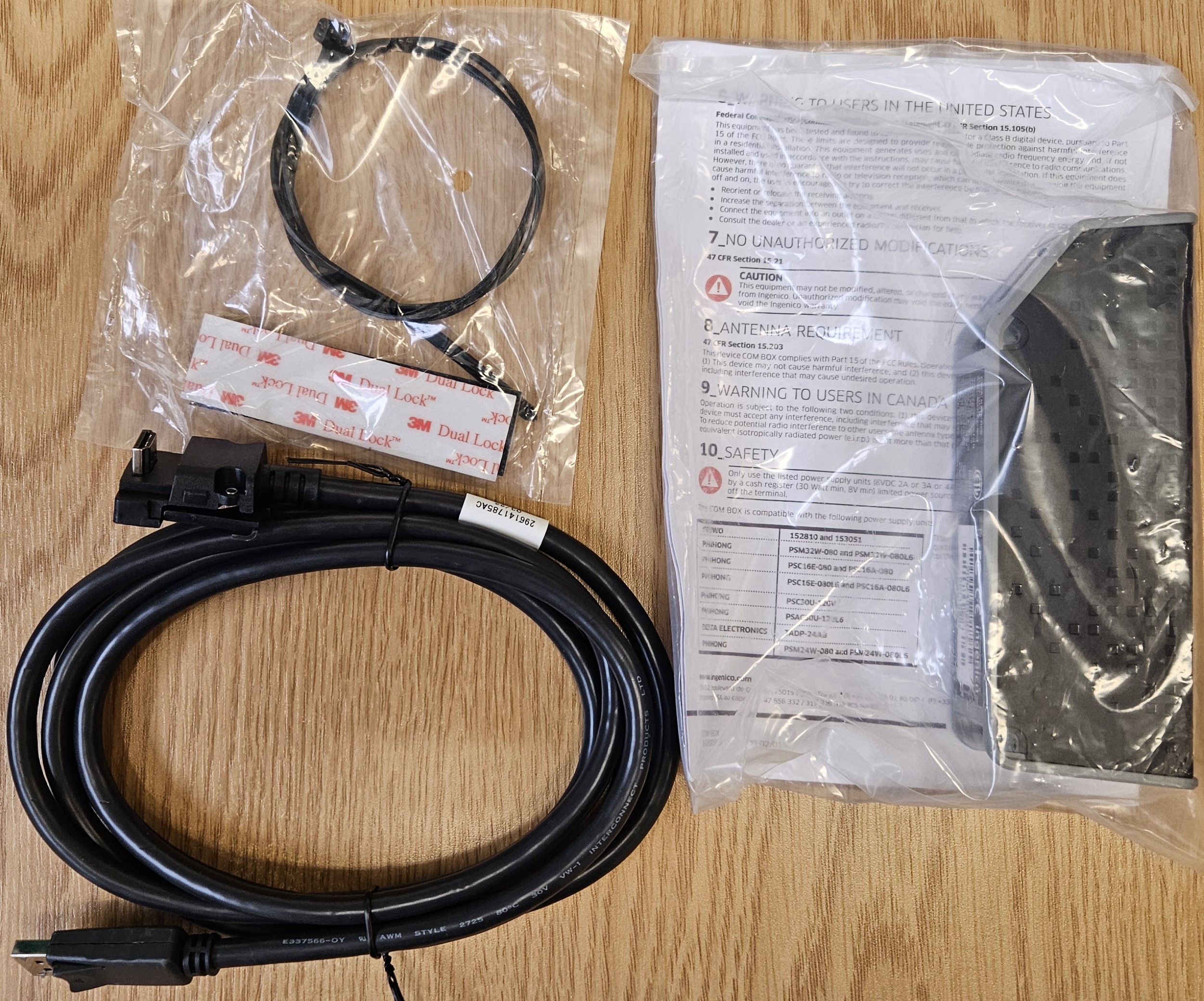

Box Contents Contents

Ingenico Com Box

Pin Pad to Com Box Cable

Mounting Kit

Instruction Manual
Weight 500g

Images



Documentation

Source Information
NA

Notes:

  • No separate Ingenico IP cable (PINPAD16-LCBL-2M) required.

  • Requires 2 additional CAT5 cables to connect the till to the splitter and the splitter to the LAN Port. You can use the Cat 5 cable already on site for the till.

Accessories & Spares

  Item Part Number Status

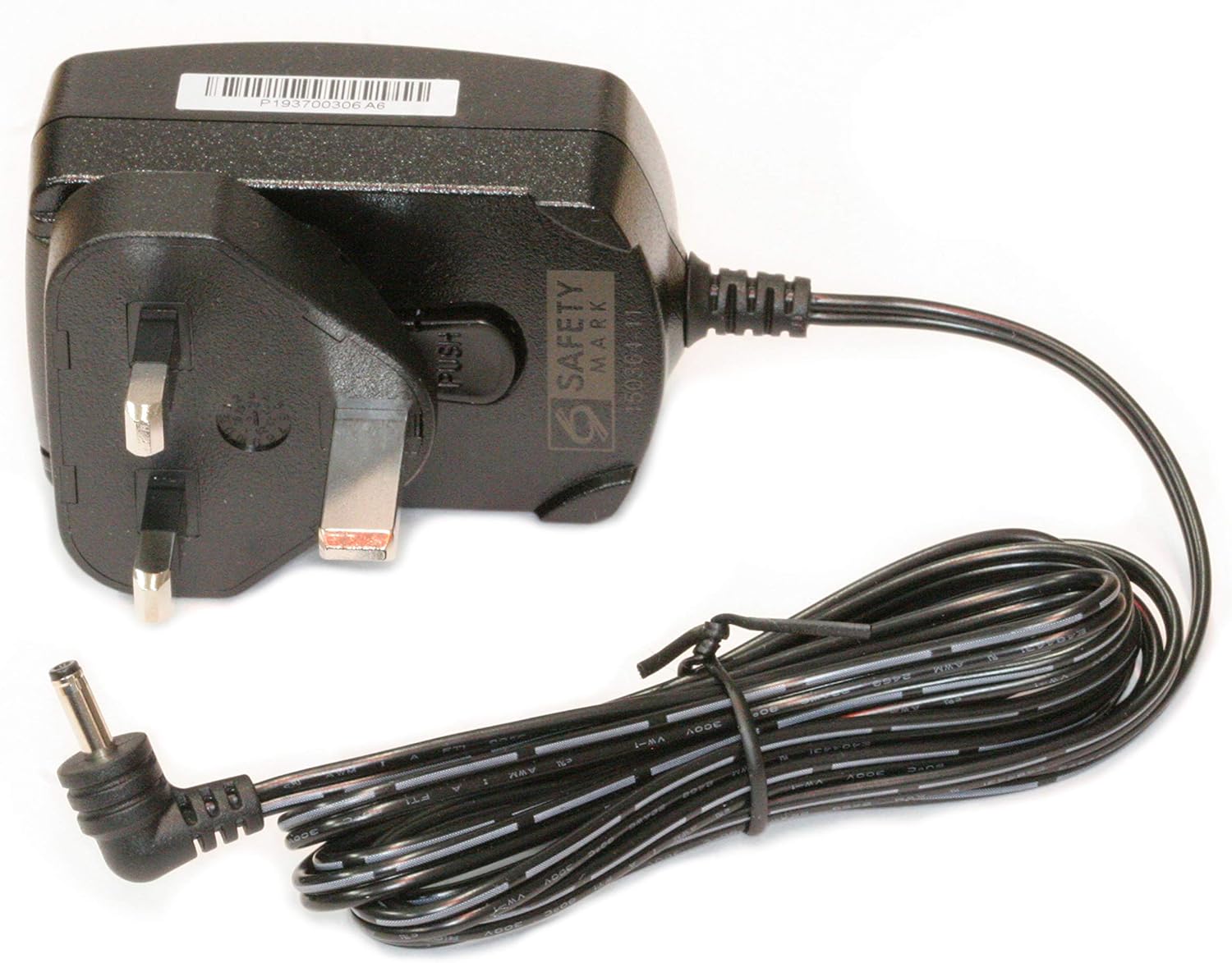

8Vdc Ingenico PSU PINPAD16-PSU-UK • Active

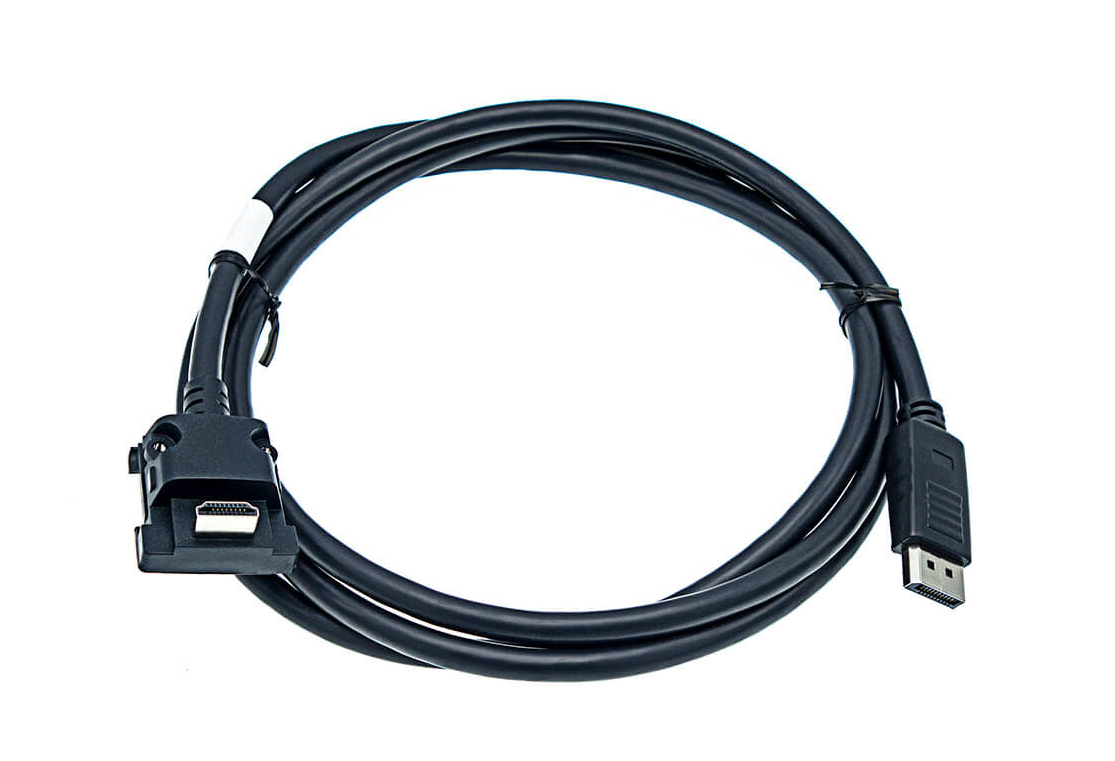

Pin pad to Com Box Cable PINPAD-INGEN-DP • Active
CAT 5 Ethernet cable, grey, 1m LDC505 • Active
CAT 5 Ethernet cable, grey, 2m LDC507 • Active
CAT 5 Ethernet cable, grey, 10m LDC506 • Active
