TABLET-A10

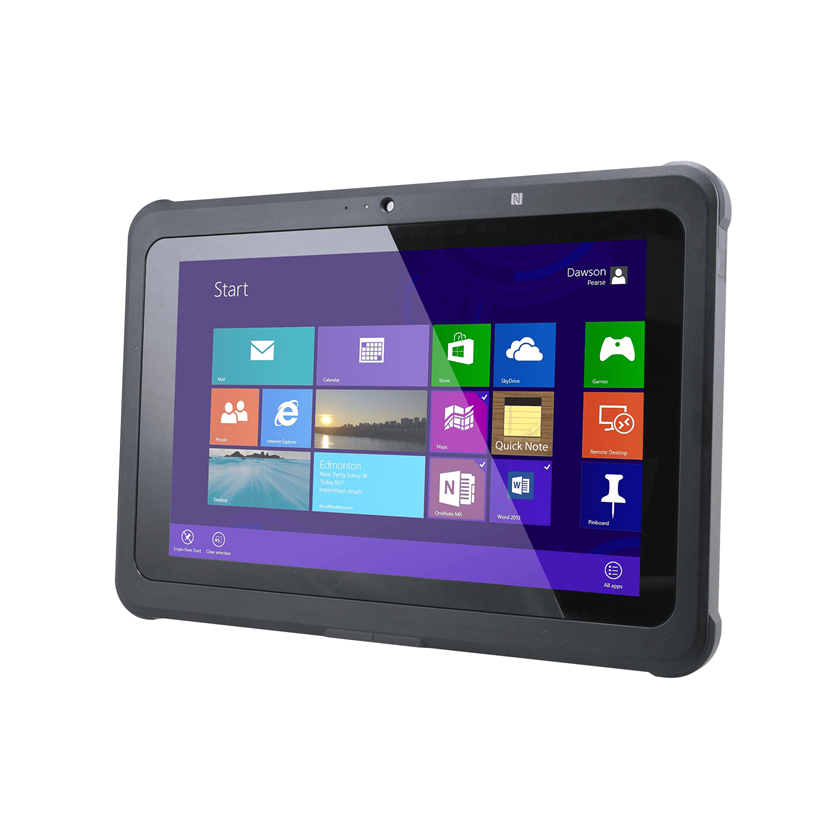

iRugged A10 Tablet
Ruggedised 10.1" Windows Tablet for Aztec FOH.
Product Details
| General |
CPU |
Intel Celeron N5100 |
| RAM | 4GB | |
| Storage | 128GB M.2 | |
| Operating System | Windows 10 LTSC | |
| Connectivity |
Wireless LAN 802.11 a/b/g/n/ac 2 x USB 3.0 Type-A Bluetooth 5.0 NFC (ISO/IEC 14443 A/B, 15693/18092, NFCIP-1, NFCIP-2, Support MIFARE and Felica) |
|
| Display Interface | HDMI (micro) | |
| Peripherals | 1D/2D Barcode Scanner | Speaker 2W x 2| Audio Jack | Microphone | |
| Display | Size: 10.1″ | Resolution: 1280 x 800 | Touch Technology: 10 Point Projective Capacitive | |
| Camera | 8MP Rear / 2MP Front | |
| Physical | Dimensions | 281 x 193.3 x 19.95 mm |
| Weight | 1 Kg (with Battery) | |
| Power | Battery |
28.44W Li-ion Battery – 6 Hours Approx |
| Mains |
Input: DC Jack +19V – Input: 100~240Vac/50~60 Hz | Output: 65W Adaptor (19V@3.15A Adaptor) |
|
| Environmental | Operating |
0°C to 40°C (32°F to 104°F) |
| Storage |
-20°C to 60°C (-4°F to 140°F) |
|
| Certifications | - |
UK UKCA EU CE / RED / EN60601-1, EN60601-1-2 : |
| Box Contents | Contents |
Tablet Power Adaptor |
| Weight | 1.5 kg |
Images
Documentation
| Source | Information |
|---|---|
| Poindus | Brochure |
Accessories & Spares
| Item | Part Number | Status | |
|---|---|---|---|
|

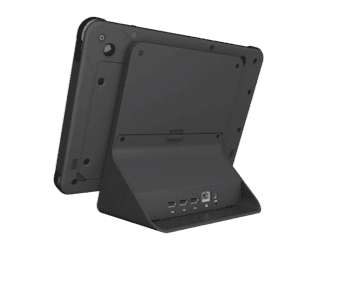

Docking Station | TABLET-A10-DOC | • Active |
|
|

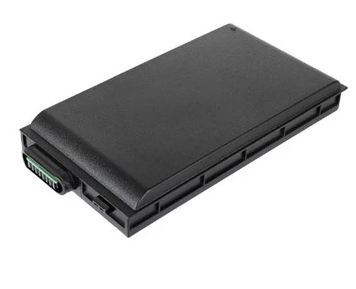

Replacement Battery | TABLET-A10-BAT | • Active |
|

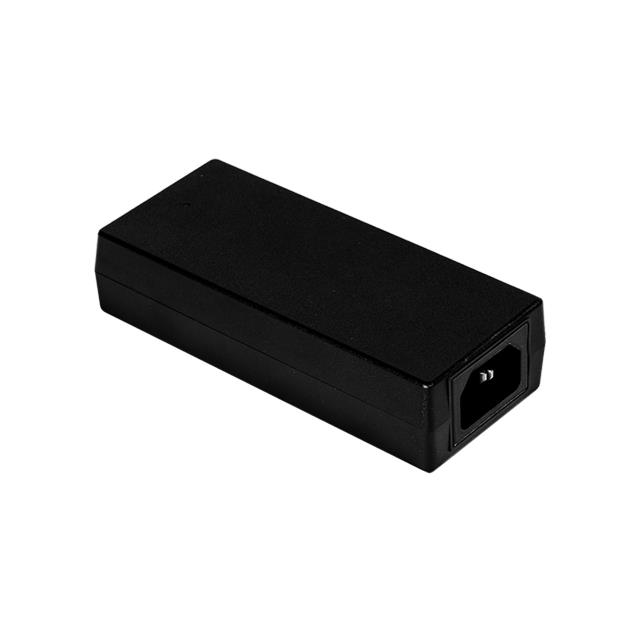

Replacement PSU | TABLET-A10-PSU |
• Active |
|

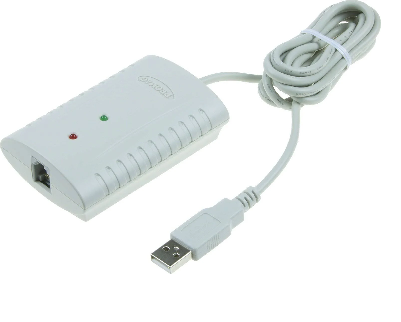

USB Cash Drawer Trigger | USB-RJ11-CASH | • Active |
|

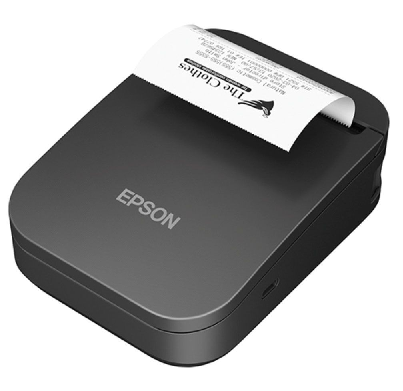

Epson 80mm mobile USB Printer | PRN35-WIFI | • Active |
