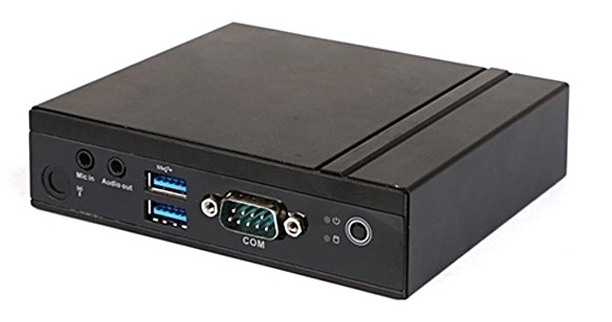

ZKMS-CONTRLR-IOT
Next generation KIQ Screen Controller
WIN 10 IOT LTSC based KIQ Screen Controller. A robust energy efficient solution that supports both Bump Bar and Touch Screen applications.
Product Details
| General |
CPU |
Intel Celeron N3350 Dual Core 2.2GHz |
| RAM | 4GB LPDDR4 (On Board) | |
| Storage | 64GB on board eMMC (1 x Full Size Mini-PCIe for MSATA) | |
| Operating System | Windows 10 2021 IOT LTSC (build 19045) (Meets minimum hardware requirements for future MS Upgrades) | |
| Connectivity |
1 x Gigabit Ethernet 2 x USB-2.0 Type-A 2 x USB-3.2 Type-A 1 x RS232 Serial Port |
|
| Display Interface |
1 x HDMI (max 3840 x 2160) 1 x Display Port (Max 4096 x 2304) |
|
| Security | TPM 2.0 | |

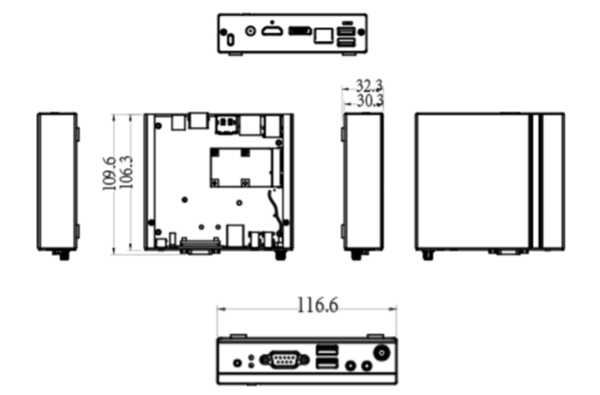

| Physical | Dimensions | 116mm x 107mm x 30mm (4.59" x 4.23" x 1.18") |
| Weight | 0.3 kg | |
| Power | External Power Brick |
Input:110 -240Vac, 50-60Hz, 1A | Output: 12 VDC, 2.0 A |
| Environmental | Operating |
0°C ~40°C (32°F~122°F) @0.7m/s Air Flow | 95% @ 40C (Non Condensing) |
| Storage |
-20℃ ~ 60℃ |
|
| Certifications | - |
CE/FCC LVD, UKCA, CCC |
| Box Contents | Contents |
VM23 Power Adaptor UK Mains Cable VESA Bracket |
| Weight | 0.6KG |
Images
Documentation
| Source | Information |
|---|---|
| Giada Inc | Brochure |
Accessories & Spares
| Item | Part Number | Status | |
|---|---|---|---|
|

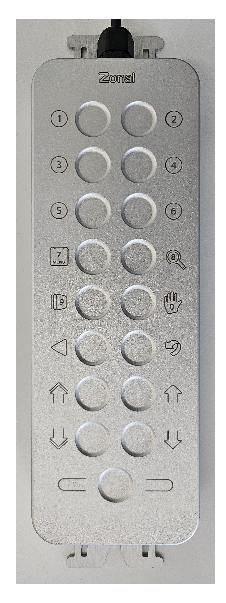

Zonal Bump Bar | ZKMS-BUMPBAR | • Active |
|
|
Standard Non Touch 21.5" TFT Monitor | PCLCD22-W2 | • Active |
|

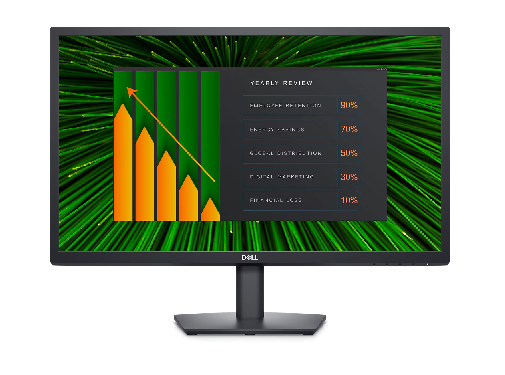

Standard Non Touch 24" TFT Monitor | PCLCD24-W | • Active |
|
15.6" Touch Screen Monitor | PCLCD16-T | • Active |
|
21.5" Touch Screen Monitor | PCLCD22-T | • Active |
|

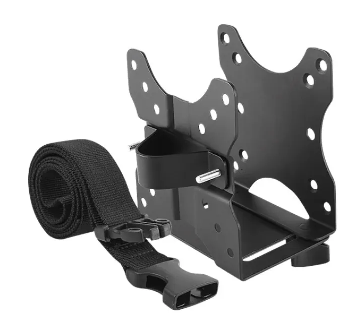

VESA Mounting Bracket | KSLCDBRK4 | • Active |
|

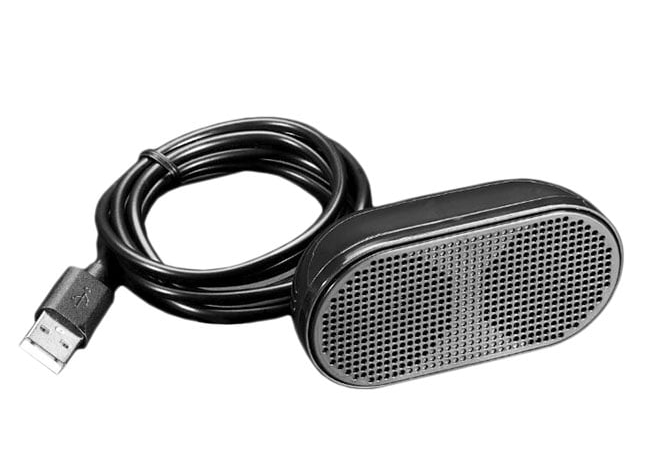

USB Speaker | ZKMS-SPEAKER | • Active |
|
Replacement 100/240 VAC, 12VDC 5.4A Power Supply | 0950-0009 | • Active; |
